How to Repair a Cut Security Camera Wire

If you’re a business owner, you know the importance of security cameras. They help you keep an eye on your property and ensure that your employees are doing their job. But, if one of your security cameras experiences a cut or break in the wire, don’t panic!

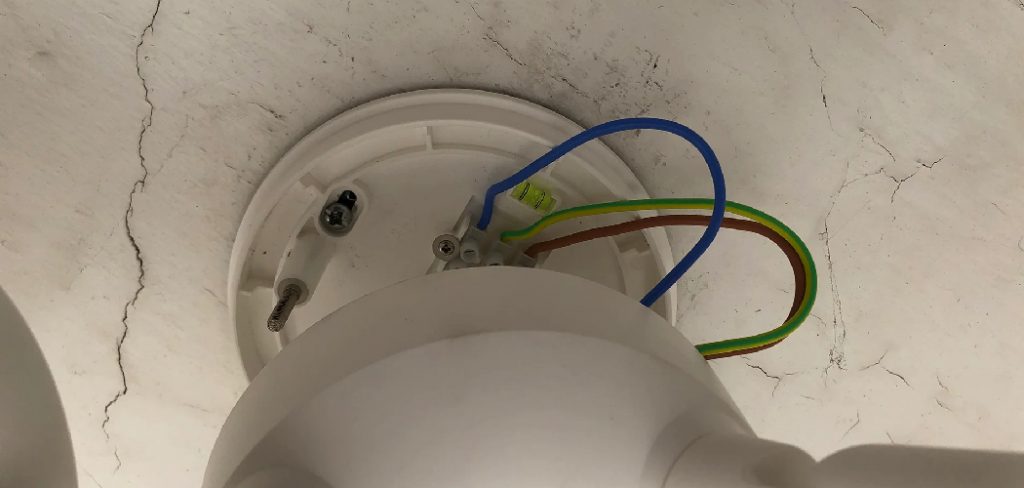

How to Repair a Cut Security Camera Wire

There is an easy way to fix it. This blog post will show you how to repair a cut security camera wire. We’ll also provide some tips for making the process easier. If this happens to your security camera system, don’t worry; it’s possible to repair the damage and get your system up and running again. Read on to learn more!

Summary: Repairing a cut security camera wire can seem daunting, but it doesn’t have to be! With the right tools, you can quickly and easily repair your camera’s wiring. This blog post will walk you through the steps of stripping the damaged ends, attaching new terminals, and splicing in new cable as needed. You’ll also learn how to apply electrical tape and secure your connectors, so that your camera is working like new again. Let’s get started!

Step by Step Process: How to Repair a Cut Security Camera Wire

Step 1: Gather Necessary Tools and Supplies

Before you begin the repair process, gather the necessary tools and supplies, including:

  • Wire strippers
  • Needle-nose pliers
  • Soldering iron and solder
  • Heat shrink tubing
  • Electrical tape
  • A lighter or heat gun
  • A small screwdriver
  • A multimeter (optional)

Step 2: Disconnect Power and Identify the Wires

Before working on the damaged security camera wire, disconnect the power source to ensure your safety. Locate the cut or damaged section of the wire and identify the individual wires within the cable. Security camera cables typically consist of multiple wires, including power, video, and sometimes audio or control wires. Note the color and function of each wire to ensure proper reconnection.

Step 3: Trim and Strip the Wires

Using the wire strippers, carefully trim any frayed or damaged ends of the wires. Next, strip approximately 1/2 inch of insulation from the ends of each wire. Be cautious not to nick or damage the copper strands when stripping the insulation.

Step 4: Apply Heat Shrink Tubing

Cut small sections of heat shrink tubing, approximately 1 inch in length, and slide them onto each wire. Ensure that you have a section of tubing for each wire that needs to be reconnected. Slide the tubing far enough down the wire so that it won’t be affected by the heat from soldering.

Step 5: Twist and Solder the Wires

Using the needle-nose pliers, carefully twist together the corresponding wires from each side of the cut. Ensure that you are connecting wires of the same color and function. After twisting the wires together, apply a small amount of solder to each connection using the soldering iron. The solder should flow smoothly and cover the twisted strands, creating a strong and secure bond.

Step 6: Insulate and Protect the Connections

After soldering the wires, allow the connections to cool for a moment. Then, slide the heat shrink tubing over each soldered connection, ensuring that it fully covers the exposed wire. Use a lighter or heat gun to carefully heat the tubing, causing it to shrink and tightly wrap around the soldered connection. This will provide insulation and protection for the repaired wires.

Step 7: Bundle and Secure the Wires

Once all the individual wires have been repaired, bundle them together neatly and secure them with electrical tape. This will provide an additional layer of protection and help to prevent future damage. Be sure not to wrap the tape too tightly, as this could cause strain on the wires and connections.

Step 8: Test the Security Camera

After completing the wire repair, reconnect the power source and test the security camera to ensure proper functionality. Check for a clear video feed, as well as any audio or control functions that may be present. If the camera is still not functioning correctly, double-check your wire connections and consult the camera’s user manual for additional troubleshooting steps.

Step 9: Secure and Protect the Repaired Cable

Once you have confirmed that the security camera is functioning correctly, secure and protect the repaired cable to prevent future damage. Consider using conduit or a protective sheath to cover the cable, especially in areas where it may be exposed to the elements or potential damage. Additionally, secure the cable with cable clips or ties to keep it in place and prevent strain on the connections.

Step 10: Perform Regular Maintenance

Regular maintenance and inspection of your security camera system can help prevent future issues with cut or damaged wires. Periodically check the cables for signs of wear, damage, or exposure to the elements, and address any potential problems promptly. By staying proactive with maintenance, you can extend the life of your security camera system and ensure its continued functionality.

By following these steps and carefully repairing the cut security camera wire, you can restore your camera’s functionality and ensure the continued security of your property. Proper soldering, insulation, and protection of the repaired connections are crucial to maintaining the integrity of the repair and preventing future issues.

Step 11: Document the Repair

It’s essential to document the repair process and keep a record of the work performed on your security camera system. Note the date of the repair, the specific wires that were reconnected, and any additional steps taken to protect or secure the cable. This documentation can be valuable for future reference, troubleshooting, or maintenance purposes.

Step 12: Monitor the Repaired Connection

After repairing the cut security camera wire, monitor the performance of the camera and the repaired connection regularly. Watch for any signs of intermittent connectivity or degradation in video quality, which may indicate a weak or failing repair. If you notice any issues, reinspect the repaired connections and address any problems as necessary.

Step 13: Seek Professional Assistance if Needed

If you are not confident in your ability to repair a cut security camera wire or if the repair does not resolve the issue, consider seeking the assistance of a professional security system technician. They will have the necessary tools, knowledge, and experience to properly diagnose and repair the problem, ensuring the reliability and effectiveness of your security camera system.

Repairing a cut security camera wire involves identifying the damaged wires, trimming and stripping the ends, soldering the connections, and insulating and protecting the repaired connections. By following these steps and regularly maintaining your security camera system, you can ensure the continued effectiveness and reliability of your security solution. Remember that professional assistance is always recommended when dealing with complex technical issues or repairs beyond your skill level.

You Can Check It Out To Fix Snapchat Camera Quality

Some Tips and Tricks

Some helpful tips on how to repair a cut security camera wire.

1. Always cut the wire at both sides of the break. Cut it in a place, preferably near an outside corner, where you can go out to the street and get another wire without digging up anything. This will save time and money.

2. Strip each wire about 1 inch (2 cm) before its intended termination point. The ends should be stripped to equal lengths.

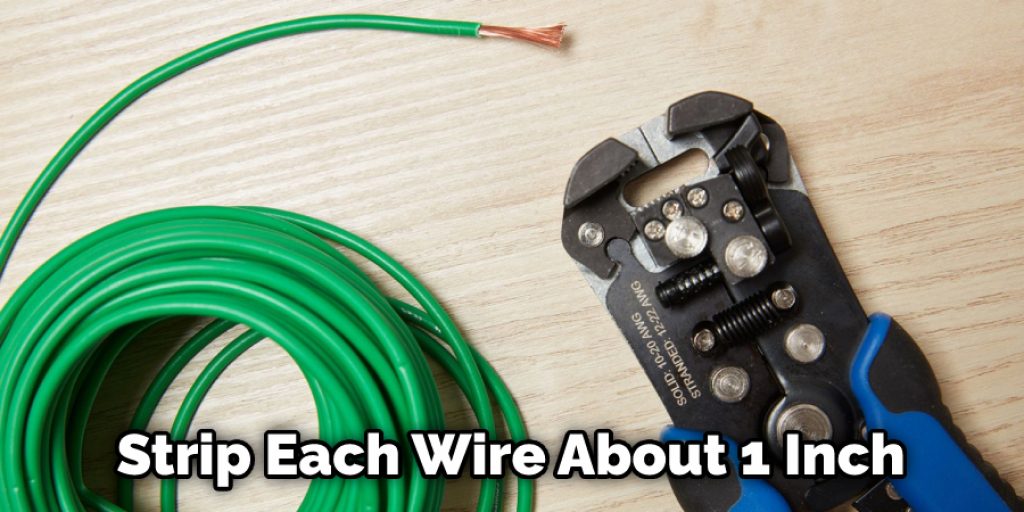

Strip Each Wire About 1 Inch

3. Strip the end of the wire you will connect it to at least 1 inch (2 cm).

4. Twist each wire bundle together, then staple them using small staples or tacks. Let’s twist them well, so they don’t come apart later.

5. Solder all connections using a good quality electrical solder, not the kind made for caulking guns.

6. Place heat shrink tubing over each wire before soldering, then shrink it with an appropriate-sized heat gun or hair drier after you have soldered. Do not use matches or a lighter to shrink tubing since this will melt it.

7. Protect the connection with a 1½-inch (3.8 cm) self-adhesive wire loom. Make sure you overlap it on itself to get an adequate shield around the wire bundles and place any sharp bends in the hose before wrapping it around the wire.

Why it’s Important to Repair a Security Camera Wire

A security camera wire is a critical part of a security system. Unfortunately, many homeowners don’t even consider that a cut or frayed security camera wire will prevent their security cameras from working. It’s easy to overlook, but it can be devastating if you find out too late.

In most cases, if the wire for your security cameras has been cut or frayed, you need to repair it before continuing. And finding a way to repair the wire may not be as easy as you think, especially if security system wires are installed in your walls and ceilings.

Do Cameras Work With Cut Wires

Yes, cameras can still work for a short while after their wires are cut. However, the longer the wire is exposed without any power, the less likely it will be that something can be done to get your camera back up and running. Typically when you find that the cable has been cut on your surveillance camera, there are two cables on the camera; one is for power while the other controls both the video coming in and the audio.

If you have found out that your cable has been cut, there are a few things you can do to attempt to get it up and running again before it has lost all of its power. First, if your surveillance camera has a control box, you can remove the batteries and let them sit for about 5-7 days before turning the camera back on. This gives time for any residual energy that may still be in the camera to try and recharge the system again.

Common Reasons Why Security Camera Power May Cut

Security camera power wires are usually made with two copper wires, creating many opportunities for a cut wire. Here are some common reasons why the camera power wire may be cut:

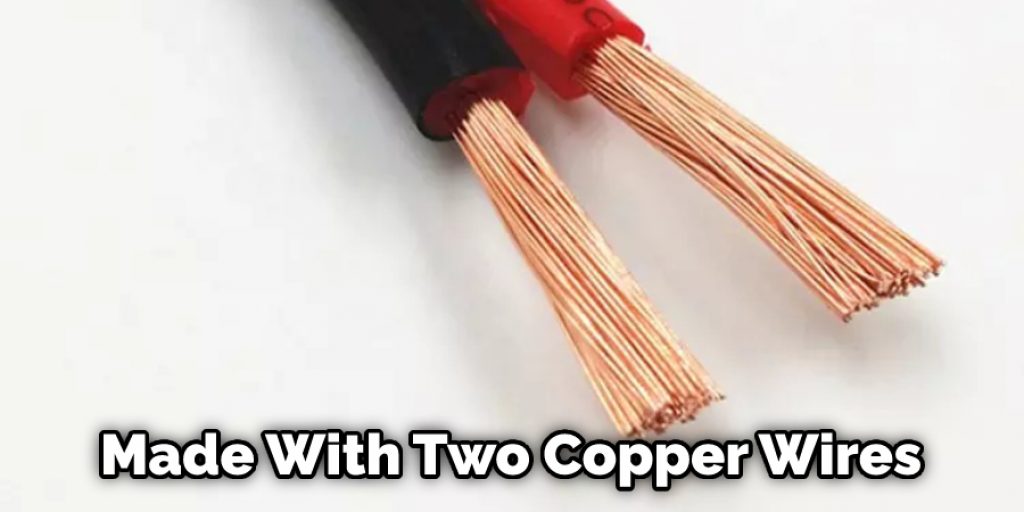

Made With Two Copper Wires

1. When replacing an old security camera, try not to pull on its cable when extracting it from the hole.

2. People tend to drive over the camera wire as they leave the installation site, as it is usually not well protected (in fact, many power cables for security cameras are installed on top of the ground)

3. When installing a wired security camera system, you need to ensure the wires and holes will not be exposed to any potential digging from people or pets.

4. When sensing a broken security camera wire, some people will try to fix it on their own by splicing the two halves of the cut cable with a piece of new cable, which creates another opportunity for more damage.

5. If a newly installed wired security camera is hit by lightning, the power wire will sometimes get damaged.

6. If the security camera wire is cut by accident, such as when an animal digs it up, or a child plays with it and breaks the insulation, you probably won’t notice until everything (such as the camera) stops working one day.

How to Splice Ethernet Cable of a Security Camera

This problem is common, but it doesn’t mean you should settle for less. For example, if your camera isn’t working anymore, it might be because the Ethernet cable has been cut or damaged somehow. This usually occurs when installing a security system, especially if the individual doing the job isn’t skilled at making connections between cables and wires.

Fortunately, there are ways to fix this problem, and you don’t need to rush out and spend hundreds of dollars on a new system. One option is to splice the cable. You will cut out the bad cable with wire strippers, attach two ends of a new Ethernet cable to each end of the faulty section, and then solder it together.

You Can Check It Out to: Repair a Silicone Mold

Frequently Asked Questions

Can I Splice Security Camera Wires?

As long as the wires are not live, you should be able to splice them together. However, make sure that you use a certified electrician to do the work if there is any potential risk of shock or fire. Splicing wires can be dangerous if done incorrectly, so it is important to consult with an expert before proceeding.

Can Video Wire Be Spliced?

Yes! Video Wire can be spliced in a number of ways, depending on the application. In some cases, it may only require a straight wire connection between two power supplies or video monitors. Where more flexibility is required, like when connecting multiple devices together using Cat5e cable or 6-pair wiring, Video Wire offers high bandwidth and low latency connections that are perfect for HDTVs and video cameras.

How Long Can a Security Camera Cable Be?

Essentially, the camera cable can last for up to two miles before it starts to lose quality. However, depending on the environment and conditions in which the cable is being used, it could last much longer. So, while two miles is a reasonable estimate, it’s always best to check the quality of the camera cable regularly to ensure that it’s still providing high-quality footage.

Do All Security Cameras Use the Same Wires?

No, not all security cameras use the same wires. In fact, many use dedicated connectors that are specifically designed for this purpose. This is because security camera wires are often subjected to high levels of strain and tension, which can cause them to fail prematurely.

Instead of using generic cables that may not be suitable for your specific needs, it’s best to invest in a cable protection system that will safeguard your camera from damage caused by misuse or accidental drops. These systems include cable ties and breakaway clamps, both of which protect the wiring against damage while still allowing you to operate the camera as normal.

Final Thoughts

If you need a quick fix for your security camera wire, it is possible to make one with duct tape. We recommend wrapping the damaged area tightly before taping over it securely. This will protect your wiring and ensure that no more damage can occur until you have time to properly take care of the problem. For an even stronger solution, wrap the broken section first with electrical tape and duct tape next to it for double protection.

Use Duct Tape

You may also want to consider using heat shrink tubing to provide extra insulation and help insulate against moisture or water exposure if cameras are installed outside near lakes or rivers where there might be flooding potential. We hope this blog post on how to repair a cut security camera wire has been helpful. If you have any questions or want to know more, then feel free to comment below!
