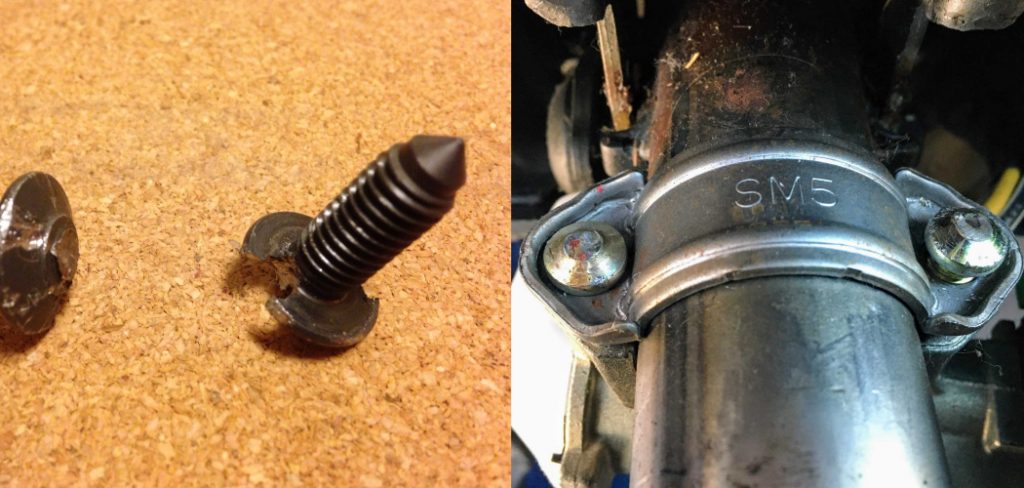

How to Remove a Shear Bolt

If you’ve ever tried to remove a shear bolt, you know that it’s not an easy task. These bolts are designed to break if too much torque is applied, so removing them can be difficult. This post will show you how to remove a shear bolt without breaking it. We’ll also give you tips on preventing them from breaking in the first place.

How to Remove a Shear Bolt

Summary:

Removing a shear bolt can be a tricky task, but there are several tools that can help. Some of the tools you can use include drills, hammers and chisels, impact drivers, bolt extractors, hydraulic jacks, vice grips, sawzalls, and dremel tools. You may also need to use torches or air chisels in some cases. Finally, pipe wrenches, hack saws, screwdrivers and other tools may help you complete the job.

Why Do Shear Bolts Need to be Removed?

You may need to remove a shear bolt for a few different reasons. The most common reason is that the bolt has broken and needs to be replaced. You may also need to remove a shear bolt if it’s been overtightened and needs to be loosened. Another reason you might need to remove a shear bolt is if the threads have become damaged and need to be repaired.

Additionally, you may need to remove a shear bolt to install a new one. The other common reason to remove a shear bolt is if you’re trying to disassemble something that has been bolted together with shear bolts. Lastly, you may need to remove a shear bolt simply because it’s in the way, and you can’t do the job without removing it.

Some Effective Ways on How to Remove a Shear Bolt

1. Use a Drill

A drill is one of the best ways to remove a shear bolt. You’ll want to use a drill bit that’s slightly smaller than the diameter of the bolt. Start by drilling a hole in the center of the bolt. Keep the drill bit perpendicular to the surface to avoid damaging the threads. Once you’ve drilled a hole in the center of the bolt, insert a screwdriver into the hole and twist to remove the bolt.

2. Use a Hammer and Chisel

If you don’t have a drill, you can use a hammer and chisel to remove the shear bolt. First, use the chisel to score around the bolt head. Then, use the hammer to strike the chisel and break off the head of the bolt. Finally, use the chisel to pry out the remainder of the bolt. You may need a nail puller or bolt extractor if the bolt is particularly stubborn.

3. Use an Impact Driver

If you have an impact driver, you can use it to remove a shear bolt. Start by inserting the impact driver into the head of the bolt. Then, apply pressure to the driver until the bolt loosens. You may need to use a lot of force to remove the bolt. Be careful not to damage the surrounding area. If the bolt is still stubborn, you can try hitting the impact driver with a hammer to loosen it.

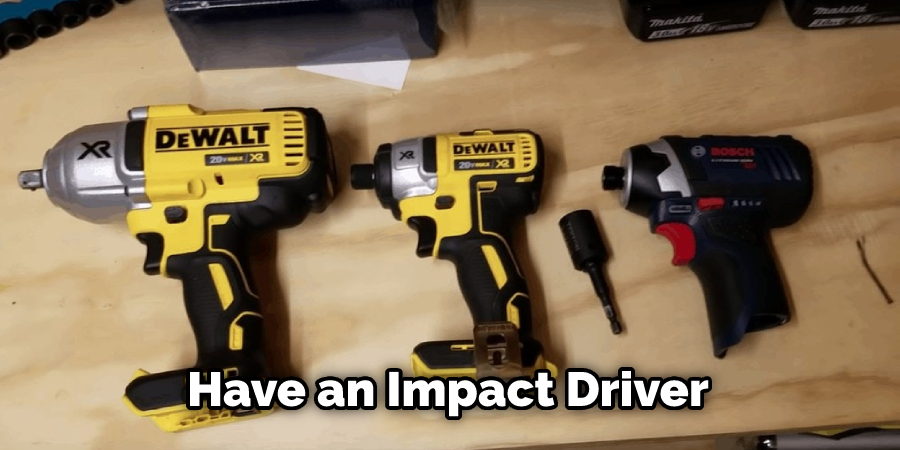

Have an Impact Driver

4. Use a Bolt Extractor

A bolt extractor is a tool that’s specifically designed to remove shear bolts. It consists of a socket that fits over the head of the bolt, and a handle that provides leverage for turning the socket.

To use a bolt extractor, first make sure that it’s the right size for the bolt you’re trying to remove. Then, attach the socket to the head of the bolt and turn the handle clockwise. The socket will grip the head of the bolt, and as you turn it, the bolt should start to loosen. Once it’s loose, you should be able to remove it by hand.

5. Use a Hydraulic Jack

If you have a hydraulic jack, you can use it to remove a shear bolt. First, place the jack under the object that’s attached to the shear bolt. Then, use the jack to lift the object until the bolt is released from the hole. Try to avoid using too much force, or you could damage the object.

6. Use Vice Grips

If you have a pair of vice grips, you can use them to remove a shear bolt. First, open the jaws of the vice grips so that they are wide enough to fit around the bolt. Next, position the vice grips on the bolt so that the jaws are close to the head of the bolt. Finally, squeeze the handles of the vice grips together to tighten them around the bolt. Once the jaws are tight, you should be able to turn the bolt and remove it.

7. Use a Sawzall

If you have a Sawzall, you can use it to remove a shear bolt. First, ensure the blade is the right size for the bolt. Next, set the saw to low speed and make sure that the blade is perpendicular to the bolt. Then, slowly saw through the bolt. Once the bolt is cut, it can be removed by hand.

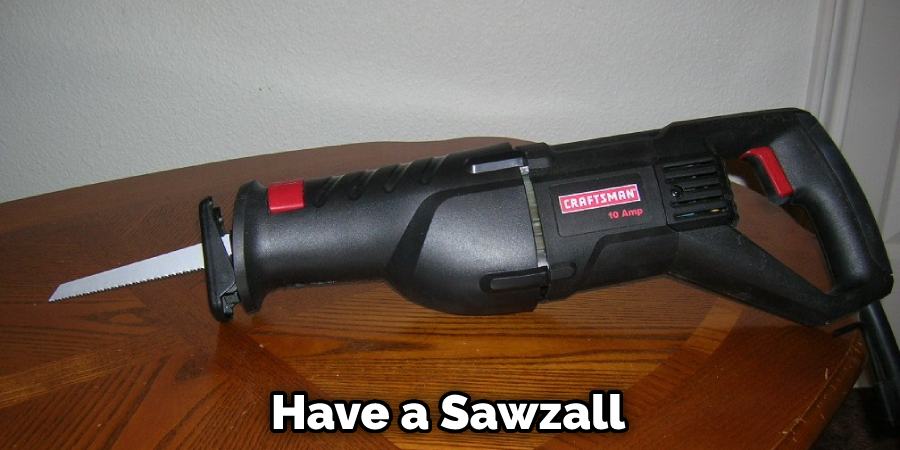

Have a Sawzall

8. Use a Dremel Tool

If you have a Dremel tool, you can use it to remove a shear bolt. Start by attaching a cutting blade to the tool. Then, position the blade against the shear bolt and start the Dremel. Apply pressure to the Dremel and let it do its work. The blade will cut through the shear bolt, allowing you to remove it. If the Dremel isn’t working, you can try using a different blade.

9. Use a Torch

If you have a torch, you can use it to remove a shear bolt. First, heat the head of the bolt with the torch until it is red hot. Then, use a wrench to turn the bolt while it is still hot. The heat from the torch will help loosen the bolt so that it can be removed. Try this method if the other methods do not work.

10. Use an Air Chisel

If you have an air chisel, you can use it to remove a shear bolt. First, use this method to ensure that the air chisel is fitted with a blunt chisel bit. Then, position the air chisel on the head of the shear bolt and strike it with moderate force. Keep striking the air chisel until the shear bolt is loosened enough to be removed by hand. If the air chisel method doesn’t work, you can try using a power drill.

11. Use a Pipe Wrench

If you have a pipe wrench, you can use it to remove a shear bolt. First, open the pipe wrench jaws so that they are the same diameter as the bolt. Next, position the wrench over the head of the bolt and tighten the jaws around it. Finally, turn the wrench clockwise to loosen the bolt. Try not to damage the bolt head as you remove it.

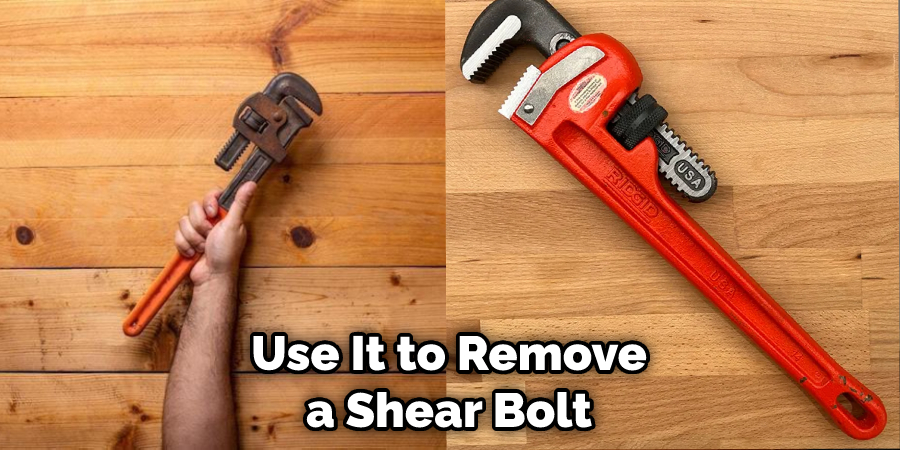

Use It to Remove a Shear Bolt

12. Use a Hack Saw

If you have a hack saw, you can use it to remove a shear bolt. First, clamp the blade onto the bolt to use a hack saw. Then, saw back and forth until you have cut through the bolt. Finally, use a pair of pliers to remove the bolt from the hole. Hack saws are a good option if you do not have an impact driver.

13. Use a Screwdriver

If you have a screwdriver, you can use it to remove a shear bolt. First, find a screwdriver that fits the head of the shear bolt. Next, insert the tip of the screwdriver into the head of the shear bolt. Finally, turn the screwdriver counterclockwise to remove the shear bolt. Remember the screwdriver method may not work on all types of shear bolts.

You Can Check It Out Drill out Broken Bolt in Engine Block

Tips and Warnings on How to Remove a Shear Bolt:

Tips:

  1. Be careful when removing a shear bolt as they can be quite sharp.
  2. Use a pair of pliers to grip the head of the bolt and twist it counterclockwise to loosen.
  3. If the bolt is stubborn, you may need to use a hammer to tap on the pliers to help loosen it.
  4. Always use the proper size and grade of bolt for your application to ensure safety.
  5. Wear gloves when working with shear bolts to protect your hands.

Warnings:

  1. 1. Be careful not to damage the threads on the bolt as this can make it difficult to re-install.
  2. 2. Shear bolts are designed to break under high loads, so be sure to replace them with new ones of the same size and grade before re-installing.
  3. 3. Do not overtighten the new bolts, as this can also cause them to shear.
  4. 4. Always follow the manufacturer’s instructions for your specific application.
  5. 5. If in doubt, consult a professional for assistance.

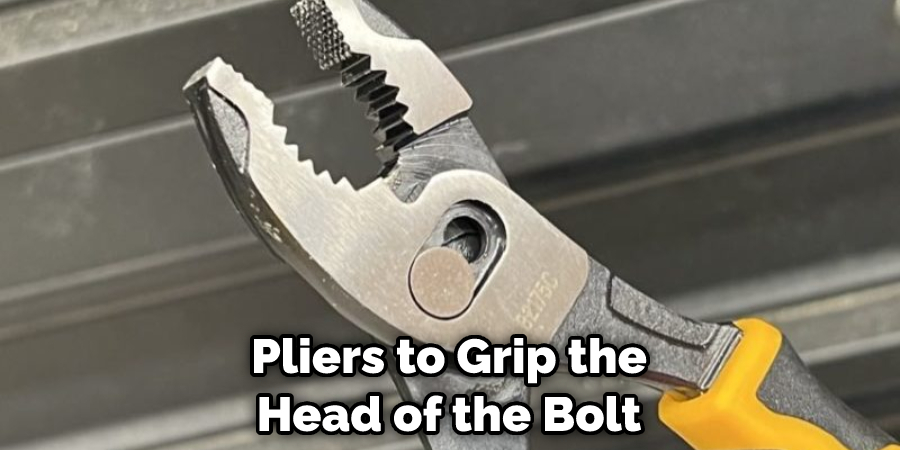

Pliers to Grip the Head of the Bolt

How Much Does It Cost to Remove a Shear Bolt?

The cost of removing a shear bolt will vary depending on the type of bolt, the material it is made from, and the size. Shear bolts are available in a variety of sizes and materials, so the price will vary accordingly. The average cost of a shear bolt is between $0.10 and $0.50. If you need to remove a shear bolt, be sure to factor in the cost of the replacement bolt as well.

Frequently Asked Questions

Are Shear Bolts Different Than Regular Bolts?

Shear bolts are different than regular bolts in that they have a shear face. This means that the bolt can move horizontally and vertically, unlike regular bolts, which only move along the vertical axis. Shear bolts are often used in applications where movement is required along two or more axes simultaneously, such as aircraft construction or wind turbine manufacturing.

Can You Replace a Shear Pin With a Bolt?

This is a difficult question to answer because it depends on the specific application. Generally, a bolt is stronger and will last longer than a shear pin in a given situation. However, if you are using a bolt in a location where shear stress is low, then a shear pin may be the better choice. It’s important to use the right fastener for the right application.

What Kind of Bolt is a Shear Bolt?

A shear bolt is a type of fastener that uses a tensioning cable to apply a pulling force to the bolt’s head. This creates the required distance between the bolt and substrate while allowing for variations in torque (up to 10,000 ft-lbs) due to movement in the environment.

Is Grade 2 Bolt the Same as a Shear Bolt?

The specifications for a bolt may vary depending on the application. However, a Grade 2 Bolt is typically a smaller bolt that is ideal for use in applications such as shear walls and roofing.

Conclusion

So there you have it, a complete guide on how to remove a shear bolt. Removing a shear bolt is not as difficult as it may seem. With the right tools and some patience, you should be able to remove the bolt without any problems. Have you ever had to remove a shear bolt? If so, we want to hear about your experience in the comments section below.
