How to Fix Water Heater Pilot Light

Do you have cold showers in the morning because your water heater isn’t working properly? Is the pilot light not igniting when you switch on the hot water faucet? Don’t worry — it’s not as difficult to fix as you may expect! In this blog post, we’ll show you all the steps required to diagnose and troubleshoot a malfunctioning water heater pilot light. We’ll explain what can cause it to quit functioning and how to get those warm baths back in record time!

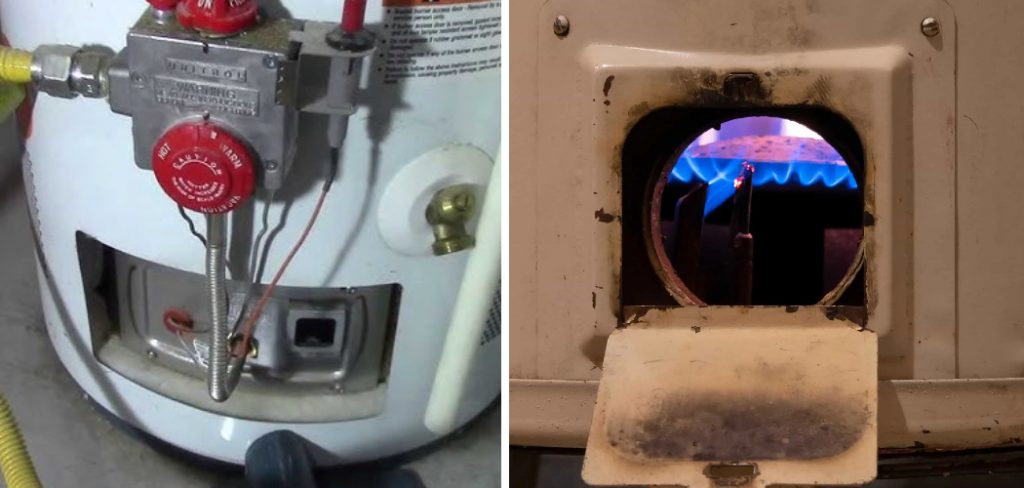

How to Fix Water Heater Pilot Light

From inspecting the source of the issue and checking for blockages to troubleshooting potential causes like a faulty thermocouple or broken gas valve, there are various solutions that can help you restore your water heater’s successful operation. Read on for our complete guide on how to fix water heater pilot light and overcome any challenges quickly and safely.

What Causes Problems in Water Heater Pilot Lights?

1 . To Be Filled

The water heater pilot light is an important component of your home’s heating system. It is responsible for igniting the gas burner, which in turn heats up the water in the tank. However, like any other mechanical device, problems can arise with the pilot light that can cause it to malfunction or fail altogether.

2 . Faulty Thermocouple

One of the most common issues with a water heater pilot light is a faulty thermocouple. The thermocouple is a safety device that senses when the pilot light has been lit and allows gas to flow to the burner. If it is not functioning properly, it will shut off the gas supply to prevent potential hazards such as gas leaks. This can be due to a buildup of dirt or debris on the thermocouple, or it may simply need to be replaced if it’s old or damaged.

3 . Clogged Pilot Tube

Another common cause of problems with the water heater pilot light is a clogged pilot tube. The pilot tube is responsible for delivering gas to the pilot light, and if it becomes clogged with debris or sediment, the flame may not be able to stay lit. Regular maintenance and cleaning of the pilot tube can help prevent this issue.

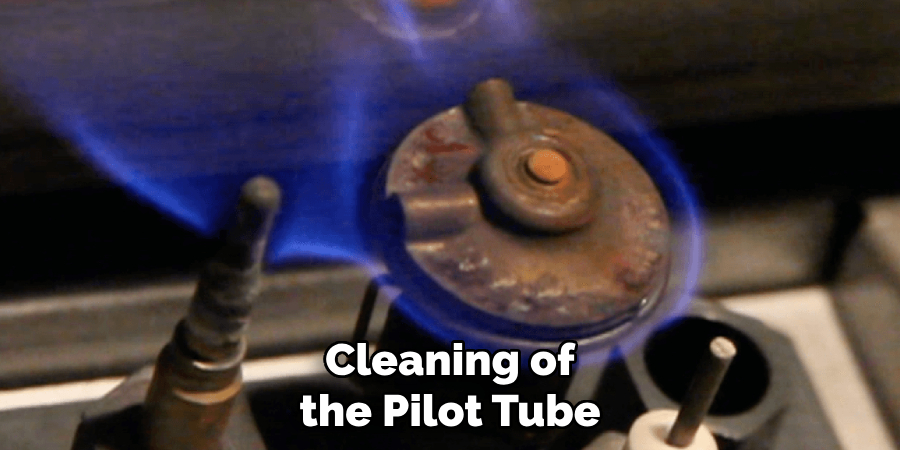

Cleaning of the Pilot Tube

4 . Gas Supply Issues

If your water heater runs on gas, then issues with the gas supply can also affect the functioning of the pilot light. Low gas pressure or a disconnected gas line can prevent the pilot light from staying lit. It’s important to check the gas supply and ensure it is functioning properly before attempting to fix the pilot light.

5 . Pilot Light Assembly Issues

The pilot light assembly itself can also be a source of problems. If the assembly is loose or damaged, it may not provide a stable flame for the pilot light. Tightening any loose connections or replacing damaged parts can help resolve this issue.

Why is It Important to Fix Water Heater Pilot Light?

1 . To Ensure Proper Functioning

When the pilot light on your water heater is not working, it can cause a variety of issues. The most obvious one being that you won’t have hot water readily available for daily use. However, even if you don’t mind taking cold showers or using cold water to wash dishes and clothes, not fixing your water heater’s pilot light can lead to bigger problems in the long run.

2 . To Save Money

Ignoring a faulty pilot light can also lead to significant financial losses. A continuously burning pilot light consumes gas or electricity, depending on the type of water heater you have. This means that if your pilot light is not functioning properly, you might be unknowingly wasting energy and increasing your utility bills.

3 . To Avoid Safety Hazards

A malfunctioning pilot light can also pose safety hazards. If the pilot light goes out completely, it can result in a buildup of gas in your home. And as we all know, gas leaks are extremely dangerous and can even lead to explosions. Therefore, fixing your water heater’s pilot light becomes crucial for the safety of yourself and those around you.

Gas Leaks Are Extremely Dangerous

10 Tips on How to Fix Water Heater Pilot Light

If you’re experiencing issues with your water heater pilot light, there are some steps you can take to try and fix it yourself before calling a professional:

1 . Follow the Manufacturer’s Instructions

Be sure to consult your water heater’s manual for specific instructions on how to troubleshoot and fix any issues with the pilot light. Different models may have different methods for relighting or fixing a malfunctioning pilot light.

2 . Check the Gas Supply

As mentioned before, low gas pressure or a disconnected gas line can be the culprit for a pilot light not staying lit. Make sure the gas supply is turned on and connected properly. Also this will be a good opportunity to check for any gas leaks.

3 . Clean the Thermocouple

If your pilot light keeps going out, it may be due to a dirty or damaged thermocouple. Use a cloth and some cleaning solution to gently wipe away any buildup on the thermocouple. If it appears damaged, it may need to be replaced.

4 . Clear Any Blockages in the Pilot Tube

A clogged pilot tube can prevent the pilot light from staying lit. Use a small wire brush or compressed air to clear any debris or sediment that may have accumulated inside the tube. Also make sure the tube is properly aligned with the pilot light.

5 . Check for Loose Connections

Make sure all connections in the pilot light assembly are tight and secure. If any are loose, tighten them using a wrench or pliers.

6 . Relight the Pilot Light

If your pilot light has gone out, follow the manufacturer’s instructions on how to relight it. Make sure to hold down the reset button for at least one minute after lighting to allow the thermocouple to warm up and detect the flame.

7 . Test The Thermocouple

If you suspect that your thermocouple may be faulty, you can use a multimeter to test its functionality. Consult your manual for specific instructions on how to do this.

8 . Replace the Thermocouple

If your thermocouple is indeed faulty, it will need to be replaced. You can purchase a new one from a hardware store and follow the manufacturer’s instructions for installation.

9 . Call a Professional

If you’ve tried all of these steps and still cannot get your pilot light to stay lit, it may be time to call a professional plumber or heating technician. They will have the expertise and specialized tools to diagnose and fix any issues with your water heater pilot light.

Call a Professional Plumber

10 . Schedule Regular Maintenance

To prevent future problems with your water heater pilot light, make sure to schedule regular maintenance checks with a professional. This will help catch any potential issues before they become major problems.

Additional Tips for Maintaining Your Water Heater

1 . Flush the Tank Regularly

Over time, sediment and minerals can build up inside your water heater tank, reducing efficiency and lifespan. Flushing the tank once or twice a year can help remove this buildup and keep your water heater running smoothly.

2 . Keep an Eye on the Temperature

Setting your water heater temperature too high not only wastes energy, but can also lead to scalding hot water. Be sure to set the temperature to a safe and comfortable level for your household.

3 . Insulate Your Tank

To save on energy costs, consider adding insulation to your water heater tank. This will help keep the water inside hot for longer periods, reducing the need for constant heating.

4 . Replace Anode Rods

Anode rods are sacrificial components that protect your water heater from corrosion. Over time, they become depleted and should be replaced every few years to ensure your water heater’s longevity.

Frequently Asked Question

What Precautions Should I Take Before Fixing My Water Heater Pilot Light?

It is important to ensure your safety before attempting to fix your water heater pilot light. Make sure to disconnect the power supply and gas supply to the water heater before beginning any repairs. Additionally, it is recommended to wear protective gear such as gloves and goggles while handling the water heater.

How Do I Know If My Water Heater Pilot Light Needs To Be Fixed?

If your water heater is not producing hot water or if the pilot light is constantly going out, it may be a sign that it needs to be fixed. You may also notice a faint smell of gas near the water heater which could indicate a problem with the pilot light.

What Tools Do I Need To Fix My Water Heater Pilot Light?

The tools needed to fix a water heater pilot light may vary depending on the type of water heater you have. However, some common tools that may be required include a screwdriver, pliers, and an adjustable wrench.

Can I Fix My Water Heater Pilot Light On My Own?

While it is possible for individuals with some experience in home repairs to fix their water heater pilot light on their own, it is always recommended to seek professional assistance. Working with gas and electricity can be dangerous if proper precautions are not taken.

How Do I Fix My Water Heater Pilot Light?

Fixing a water heater pilot light typically involves relighting the pilot or replacing faulty parts such as the thermocouple or gas control valve. It is important to refer to the manufacturer’s instructions for your specific water heater model or consult a professional for guidance.

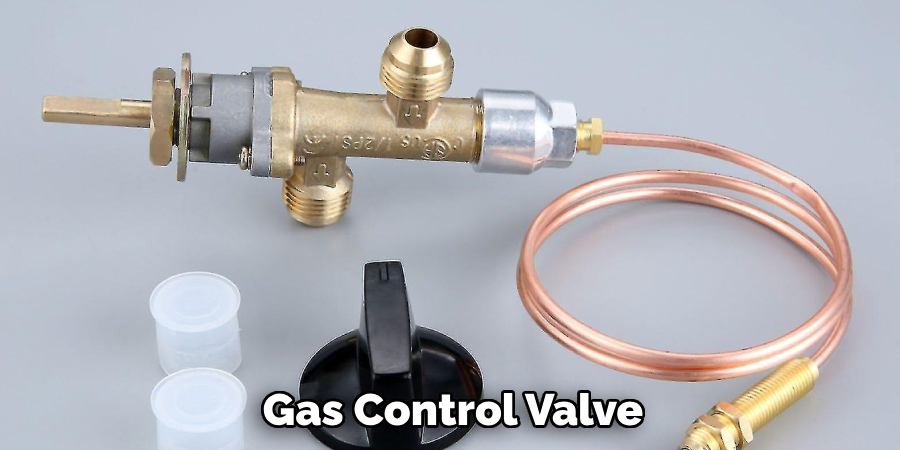

Gas Control Valve


Knowing how to fix water heater pilot light can save you time and money in the long run. Regular maintenance and addressing any problems as soon as they arise can help keep your water heater running efficiently for years to come.

Remember to always consult your water heater’s manual for specific instructions and safety precautions before attempting any repairs yourself. If you’re unsure or uncomfortable with fixing the pilot light, don’t hesitate to call a professional for help. With proper care and maintenance, your water heater can continue providing hot water for your household needs.
