The Powertrain Control Module (PCM) is a vital component that acts as the brain of your vehicle, managing essential functions of both the engine and transmission systems. It ensures smooth operation by regulating fuel injection, ignition timing, and transmission shifting, among other processes. However, when the PCM begins to fail, it can lead to noticeable issues such as poor engine performance, irregular transmission behavior, reduced fuel efficiency, or warning lights appearing on the dashboard. These signs indicate that immediate attention is necessary to prevent further complications.
Understanding how to fix powertrain control module problems is crucial to restoring your vehicle’s functionality and achieving optimal performance. This guide will take you through the essential steps, including diagnosing symptoms, troubleshooting potential causes, executing repairs, and replacing or reprogramming the PCM if needed. It will also highlight when professional help should be sought to ensure the repair is done accurately and safely.
Identifying Symptoms of a Faulty Powertrain Control Module
Common Symptoms
A faulty Powertrain Control Module (PCM) can manifest through various warning signs that affect your vehicle’s performance. Some of the most common symptoms include:
- Engine misfires, stalling, or trouble starting: These issues can occur if the PCM is unable to regulate engine timing or fuel delivery properly.
- Poor fuel economy or hesitation during acceleration: A malfunctioning PCM may disrupt fuel injection or air-fuel mixture, leading to inefficiencies.
- Transmission problems: Symptoms such as slipping gears, rough shifting, or erratic transmission behavior can be linked to PCM failure.
- Warning lights on the dashboard: Indicators like the Check Engine Light or Transmission Warning Light frequently signal PCM-related issues.
Understanding PCM Failure Causes
Understanding the potential causes of PCM failure can aid in prevention and maintenance. Common causes include:
- Electrical issues: Blown fuses, short circuits, or damaged wiring can disrupt the PCM’s functionality.
- Software glitches or firmware corruption: Errors in the software may impair the unit’s performance.
- Heat, moisture, or contaminants: Harsh environmental factors can physically damage the PCM, causing it to fail.
Diagnosing the Problem

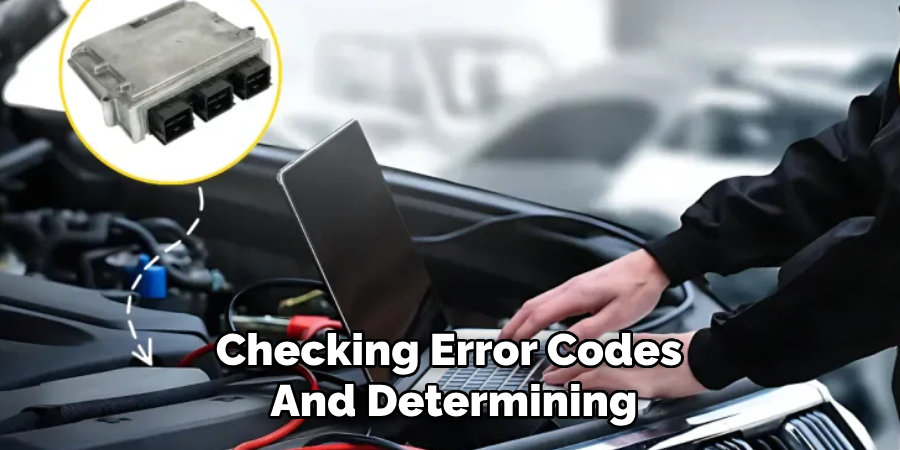

Diagnosing PCM failure is challenging without the right tools, as the symptoms often overlap with other mechanical issues. Performing a diagnostic scan using an OBD-II scanner is a critical step. This tool can read error codes from your vehicle’s computer systems to pinpoint whether the PCM is indeed the culprit.
Tip: Addressing PCM-related problems early can prevent further complications, reduce repair costs, and restore your vehicle’s performance efficiently.
Tools and Materials Needed
Diagnostic Tools
- OBD-II scanner: Essential for checking error codes and determining whether the PCM is malfunctioning.
- Voltmeter or multimeter: Useful to inspect electrical connections and measure voltage output accurately.
Tools for Removal and Installation
- Wrench set or socket set: To loosen screws or bolts securing the PCM or surrounding components.
- Screwdrivers (flathead and Phillips): For carefully removing panels or accessing components around the PCM.
- Torque wrench: Ensures the PCM is reinstalled with the correct torque specifications to prevent overtightening.
Replacement Parts
- Replacement PCM: If necessary, acquire one from the vehicle manufacturer or a trusted, reputable supplier.
- Electrical connectors, fuses, or wiring harnesses: Replace these components if they show signs of damage or wear.
Materials for Cleaning and Sealing
- Contact cleaner or electrical cleaner: Used to clean connectors or contacts and maintain optimal conductivity.
- Silicone sealant or dielectric grease: Provides protection against moisture or corrosion, ensuring long-lasting connections.
Tip: Having the right tools and materials on hand streamlines the repair process and minimizes the risk of additional complications.
Performing a Diagnostic Check
Using an OBD-II Scanner

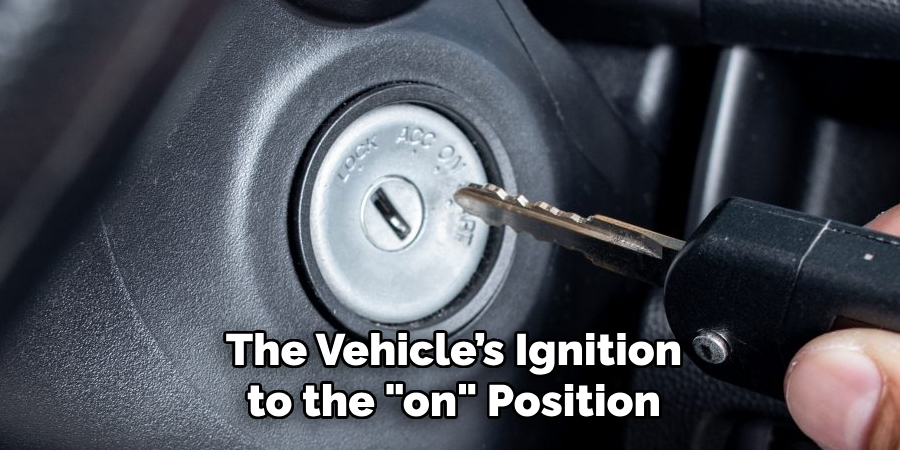

Connect the OBD-II scanner to the vehicle’s diagnostic port, typically located under the dashboard near the driver’s side. Turn the vehicle’s ignition to the “ON” position but do not start the engine. Use the scanner to retrieve any stored trouble codes related to the PCM or other engine and transmission components. Pay close attention to codes such as “P0600,” “P0601,” “P0602,” or any others that suggest possible PCM malfunctions. These codes provide valuable insights into the root cause of the issue, allowing for targeted troubleshooting.
Interpreting Error Codes
Document the error codes provided by the OBD-II scanner for future reference during the repair process. Note that not all PCM-related codes necessarily mean that the PCM is defective. Some issues, such as faulty wiring, malfunctioning sensors, or damaged fuses, can mimic PCM failure. Consult the vehicle’s service manual to accurately interpret the error codes and cross-check them with common diagnostic symptoms.
Testing Voltage and Connections
Test the voltage at the PCM’s power supply and ground connections using a multimeter to confirm proper functionality. Carefully inspect the wiring harness for any visual damage, including fraying, corrosion, or breaks in the insulation. Verify that all connectors are tightly secured to the PCM, as loose or corroded connections can disrupt the unit’s operation.
Tip: Performing both a diagnostic scan and a voltage test is essential in determining whether the PCM is genuinely defective or if external factors are contributing to performance issues.
How to Fix Powertrain Control Module: Removing the Faulty PCM
Preparing for Removal

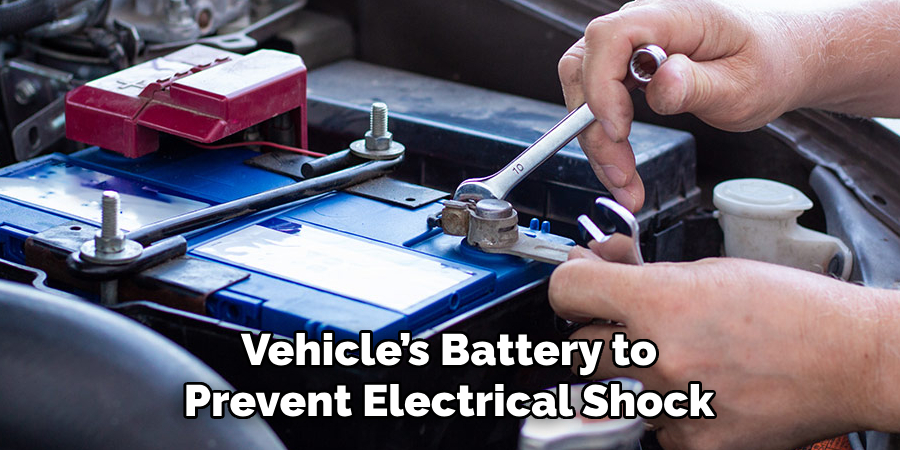

Disconnect the vehicle’s battery to prevent electrical shock or unintentional damage to the vehicle’s electrical system. Use a wrench to carefully disconnect the negative terminal, followed by the positive terminal, ensuring no electrical power flows. The PCM is generally located in areas such as the engine bay, beneath the dashboard, or within the fuse box, depending on the vehicle’s make and model. Consult your vehicle’s service manual to pinpoint the PCM’s precise location.
Accessing the PCM
Before gaining access, remove any panels, covers, or obstructing components as indicated in the service manual. Depending on the vehicle, you might need to remove parts such as the air intake assembly, radiator shroud, or other peripheral components for easier access. Keep screws and bolts from these parts stored safely and organized for later reassembly.
Disconnecting the Wiring Harness
Carefully disconnect all wiring harnesses attached to the PCM, ensuring not to force or pull on the wires. If the connectors feature locking clips, use a flathead screwdriver or similar tool to gently disengage them without causing damage. If necessary, label the wiring harness connectors to ensure accurate reconnection during the installation of the replacement PCM. This step will make the process smoother and reduce the risk of wiring errors.
Removing the PCM
Locate and loosen the screws or bolts that secure the PCM in its mounting bracket. Use an appropriate socket or screwdriver for your vehicle’s specific hardware. Once all fasteners are removed, gently slide the PCM out of its housing. Take care not to damage any surrounding components or wiring during removal. If the module is resistant or stuck, inspect for hidden fasteners or securing clips that may still be attached.
Tip: Keep all bolts, fasteners, and connectors organized to ensure a seamless reinstallation process.
Repairing or Replacing the PCM
Option 1: Reprogramming the Existing PCM

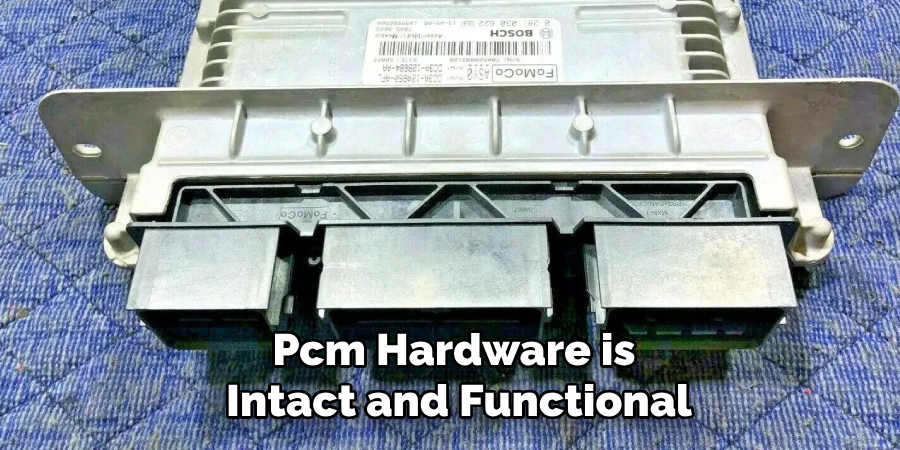

In some cases, a faulty PCM may only require reprogramming, especially if software corruption is the root cause of the issue. Reprogramming the PCM involves updating its software to the latest firmware version and recalibrating it to operate correctly with the vehicle’s systems. Contact the vehicle manufacturer or consult a professional mechanic with the necessary diagnostic equipment to complete this process. They will use specialized tools, such as a scan tool or reprogramming device, to upload the updated firmware and restore the PCM’s functionality. This option is often less expensive than full replacement, but it is only viable if the PCM hardware is intact and functional.
Option 2: Replacing the PCM
Replacement is the only solution if the PCM is severely damaged, shorted, or otherwise beyond reprogramming. Begin by ordering a replacement PCM that matches the original unit’s specific part number and specifications to ensure compatibility with your vehicle’s make, model, and engine configuration. Be cautious when purchasing a used PCM, as these must be reprogrammed to match your vehicle’s VIN and particular settings.
To install a new PCM, align it with the mounting points in the vehicle’s PCM housing and secure it using the appropriate screws or bolts. Next, reconnect all wiring harnesses, ensuring each connector is firmly attached, and verify that no pins are bent or damaged. Properly reconnecting these harnesses is crucial for the PCM to interface correctly with other vehicle systems.
Testing the New or Repaired PCM
Once the PCM has been reinstalled, reconnect the vehicle’s battery and start the engine. Conduct a final diagnostic scan with an OBD-II scanner to ensure there are no error codes and that the PCM is functioning as intended. Pay close attention to the vehicle’s engine performance, transmission operation, and any associated systems affected by the PCM. This real-world test will confirm whether the repair or replacement has resolved the initial problem.
Tip: Always ensure that a newly installed or repaired PCM is programmed with the correct software for your vehicle before attempting to start the engine. Failure to do so could lead to additional malfunctions or compatibility issues.
Reassembling and Final Checks
Reinstalling Removed Components
Once the new or repaired PCM is installed and tested, reassemble any removed parts or panels to access the PCM. Carefully reinstall all bolted panels, screws, and clips, ensuring everything is securely fastened. Double-check to make sure all wiring harnesses and connectors are properly seated and undamaged during reassembly. This step is vital to avoid loose connections that could lead to further issues or malfunctions.
Reconnecting the Battery
After reassembling components, reconnect the vehicle’s battery terminals. Ensure the positive and negative connections are correctly aligned to prevent electrical damage or performance issues. Use a wrench to tighten the terminals firmly, but avoid over-tightening, which could cause unnecessary damage to the battery clamps.
Final Test Drive and Monitoring
Take the vehicle for a thorough test drive to verify the repair has resolved the issue. Monitor the dashboard closely for any warning lights or error messages. Pay attention to key performance aspects such as engine response, acceleration, and smooth transmission shifting. This real-world driving assessment ensures that the PCM is functioning correctly and that the vehicle performs optimally.
Tip: Always perform a test drive to confirm the success of the repair and address any remaining concerns before concluding the process.
Conclusion
Fixing or replacing a faulty Powertrain Control Module involves several key steps, including diagnosing the issue accurately and disconnecting the battery. The process includes careful removal of the PCM, reprogramming or installing a new unit, and securely reinstalling all components. Using the right tools and materials is crucial to ensure proper handling and prevent further issues. If reprogramming or replacement feels too complex, seek professional help to avoid complications. Knowing “how to fix powertrain control module” can restore your vehicle’s performance and save significant repair costs while maintaining long-term reliability.
