A radiator is an essential component in a vehicle’s cooling system, responsible for regulating engine temperature by transferring heat away from the engine. Its efficient operation is crucial to preventing the engine from overheating, which can lead to significant damage and costly repairs.
Unfortunately, radiators are susceptible to various types of damage, among which pinhole leaks are notably common. These tiny leaks can occur due to corrosion, natural wear and tear, or physical impacts, and they significantly affect the radiator’s ability to hold coolant. As the coolant level drops, the likelihood of overheating rises.
The purpose of this article is to provide comprehensive guidance on how to fix pinhole in radiator situations, offering advice on temporary fixes and permanent repairs, as well as indicators that suggest replacement is necessary. By understanding these solutions, vehicle owners can maintain their radiators effectively and ensure optimal engine performance.
Identifying the Source of the Leak
A. Visual Inspection
- Look for Visible Leaks:
Open the hood and visually inspect the radiator for signs of coolant leakage. A pinhole leak may appear as small droplets or mist around the radiator surface, often more noticeable when the engine is running or has been turned off recently.
- Check for Corrosion:
Examine the radiator for signs of rust or corrosion, which often contributes to pinhole leaks, especially in older radiators. Focus on checking the areas around the seams and the fins where damage is more likely to occur.
B. Coolant Levels
- Check the Coolant Reservoir:
Inspect the coolant reservoir to ensure the coolant is at the appropriate level. Low coolant levels may indicate a leak. Always check the coolant level when the engine is cool to avoid injury from hot coolant or steam.
C. Pressure Test

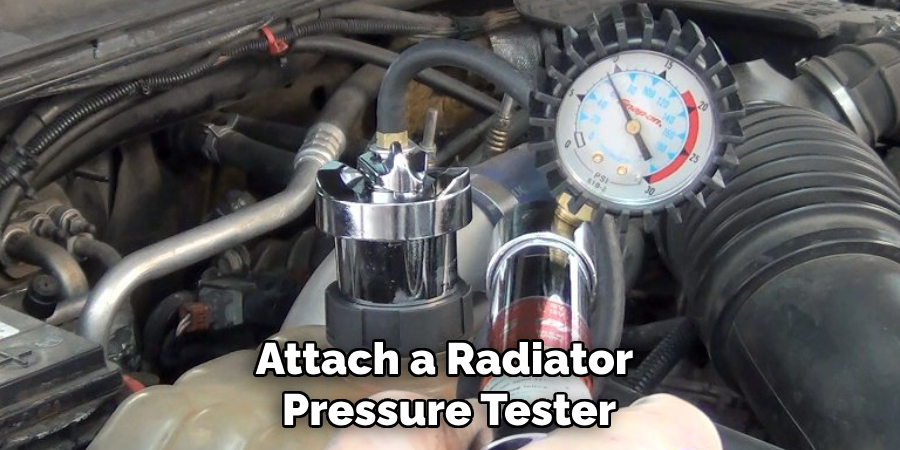

- Perform a Pressure Test:
A radiator pressure test can help identify small leaks that may not be visible during a visual inspection. Attach a radiator pressure tester to the radiator cap and pressurize the system according to the manufacturer’s specifications. Look carefully for any signs of leaking coolant, which will indicate the exact location of the pinhole.
This test is particularly useful because it can reveal leaks only when the system1 is under pressure, ensuring a thorough examination of the radiator’s integrity.
Tools and Materials Needed
Selecting the right tools and materials is crucial to effectively repair a pinhole in a radiator. Here’s a detailed guide on what you might need for both temporary fixes and permanent repairs:
A. Temporary Fix Materials
- Radiator Stop Leak Solution:
A commercial radiator stop-leak product can be a quick and easy solution for temporarily sealing small pinholes from the inside. The liquid circulates through the radiator, sealing holes and preventing further leakage.
- Epoxy Putty:
Epoxy putty is another effective option for temporarily sealing pinhole leaks. When applied around the damaged area, this material hardens into a waterproof barrier. It’s particularly useful for sealing external leaks and can be molded to fit the size of the leak.
B. Permanent Repair Tools
- Soldering Kit:
A soldering kit is essential for a permanent solution, especially if your radiator is constructed from metals like brass or copper. Soldering involves melting solder to fuse the metal, effectively sealing the pinhole.
- Sandpaper and Wire Brush:
Before performing any repairs, cleaning the area around the pinhole is important. Sandpaper and wire brushes help remove rust and debris, ensuring better adhesion and a stronger repair.

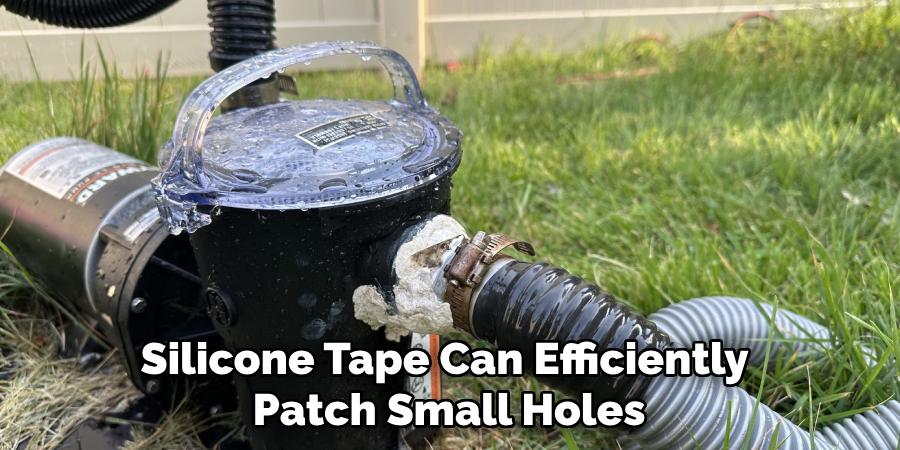

- Sealant or Silicone Tape:
While these materials are more suitable for temporary fixes, high-temperature sealants or silicone tape can efficiently patch small holes until a permanent repair is feasible. They create a flexible, airtight seal that temporarily withstands operational pressures.
How to Fix Pinhole in Radiator: Temporary Fixes for a Pinhole Leak
Step 1: Using Radiator Stop Leak Solution
Purchase a Commercial Radiator Stop Leak: Start by selecting a high-quality stop leak solution that’s compatible with your vehicle’s radiator material, whether it’s aluminum, copper, or brass. Choosing a product that will meld well with the specific metal is crucial for effective sealing. Add the Solution to the Coolant: Ensure the engine is completely cool before you begin.
Carefully open the radiator cap and pour the stop-leak product directly into the radiator. Be sure to follow the manufacturer’s instructions regarding the quantity needed. Run the Engine: Once added, start the engine and allow it to run for 10-20 minutes. During this period, the solution will circulate through the cooling system and work to seal the pinhole from the inside, providing a temporary fix.
Step 2: Epoxy Putty Repair
Clean the Affected Area: Start by thoroughly cleaning the area surrounding the pinhole using sandpaper and a wire brush. This will remove any dirt, grease, or corrosion, providing a clean surface for the epoxy to adhere to. Apply the Epoxy Putty: Mix and mold the epoxy putty according to the manufacturer’s instructions.
Press the putty firmly over the pinhole, ensuring it fully covers the damaged area to create an effective seal. Let It Harden: Allow the epoxy to harden as per the manufacturer’s recommended time, usually within 1-2 hours. Once set, the putty will create a strong, temporary seal, reducing the risk of further coolant loss until a permanent repair can be made.
Step 3: Silicone Tape or High-Temperature Sealant
Wrap the Area with Silicone Tape: Clean the area around the pinhole thoroughly to ensure effective adhesion. Then, wrap the area tightly with high-temperature silicone tape, which acts as a temporary patch to prevent leakage.

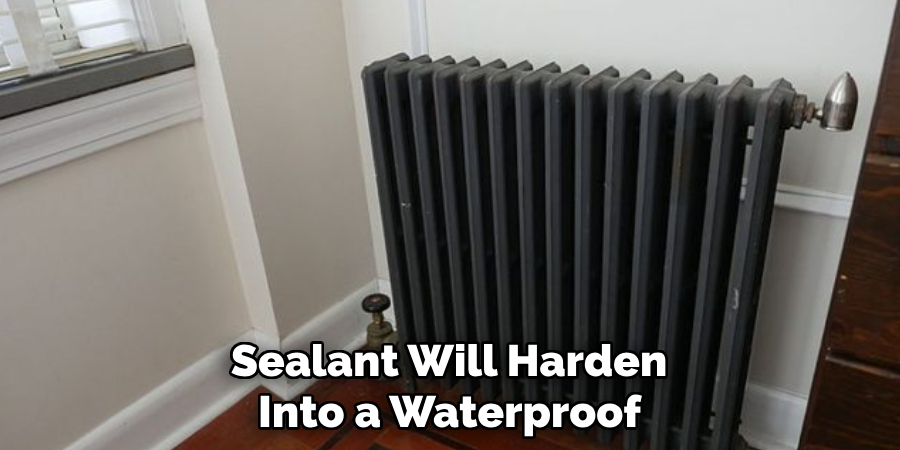

Apply Sealant: As an alternative, high-temperature sealant can be applied around the pinhole. This sealant will harden into a waterproof barrier capable of withstanding high temperatures, offering another efficient temporary fix for the leak. Both methods provide stop-gap solutions that help maintain the radiator’s integrity until permanent repairs are made.
Permanent Fix: Soldering the Pinhole
Step 1: Prepare the Radiator for Repair
Drain the Coolant:
Before starting the repair, drain the radiator by opening the drain valve located at the bottom. Collect the coolant in a suitable container for reuse or proper disposal in accordance with environmental regulations. This step ensures that the radiator is empty, preventing any interference with the soldering process.
Clean the Area Around the Pinhole:
Use sandpaper or a wire brush to meticulously clean the surface around the pinhole, removing any rust, dirt, and debris. This cleaning is crucial as it provides a clean surface for the solder to adhere properly, ensuring a secure and long-lasting repair.
Step 2: Heat the Area with a Soldering Iron
Apply Heat:
With the soldering iron, gently heat the area surrounding the pinhole. This step ensures that the solder flows smoothly and efficiently to fill the hole. Proper heating prepares the surface for better solder adhesion.
Avoid Overheating:
Take careful measures not to overheat the radiator, as excessive heat can lead to further damage or weaken adjacent areas. Maintain a steady temperature to safeguard the overall integrity of the radiator.
Step 3: Apply the Solder
Apply Solder to the Pinhole:
Once the area is adequately heated, apply the solder directly to the pinhole. Allow the solder to melt and flow into the hole, spreading evenly to form a solid, durable seal that can withstand pressure and temperature changes.

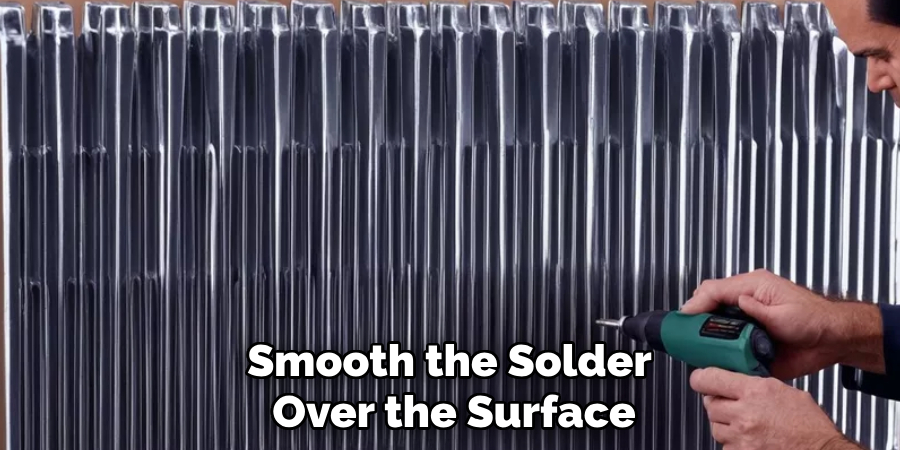

Smooth the Solder:
Using the soldering iron, smooth the solder over the surface to ensure it completely seals the pinhole. It’s important to cover the area evenly, avoiding any excessive buildup of solder that could create uneven surfaces or potential weaknesses.
Step 4: Reassemble and Test the Repair
Refill the Radiator:
After the solder has completely cooled, proceed to refill the radiator with coolant. During refilling, take care to check for any inadvertent leaks to confirm that the repair process has been successful.
Test for Leaks:
Start the engine and let it run for a while to examine the effectiveness of the repair. Monitor the repaired area for any signs of leakage around the pinhole, ensuring that the solder has successfully created a permanent and reliable seal.
Preventing Future Pinhole Leaks
A. Regular Radiator Maintenance
Flush the Cooling System Regularly: Flushing the cooling system every 1-2 years can significantly reduce the risk of rust and corrosion, two key contributors to pinhole leaks. This process involves draining and refilling the system with fresh coolant, which helps remove any built-up deposits and contaminants.
Inspect for Damage: Regularly inspecting the radiator for signs of wear, such as rust spots, thinning metal, or existing small leaks, is essential. Early detection of such issues can help prevent pinholes from forming and mitigate the risk of major damage, ensuring the longevity and efficiency of your radiator.
B. Use the Right Coolant Mixture
Maintain Proper Coolant Levels: To avoid corrosion and other issues, it’s crucial to ensure that the coolant is always topped up and properly mixed according to manufacturer specifications. An improper coolant mixture can lead to the accelerated wear of radiator components.
Use Inhibitors: Selecting coolants that include corrosion inhibitors is another effective strategy for preventing pinhole leaks. These inhibitors provide a protective layer on the metal surfaces within the radiator, safeguarding against rust and ultimately reducing the likelihood of leaks developing over time, thus enhancing the radiator’s durability and performance.

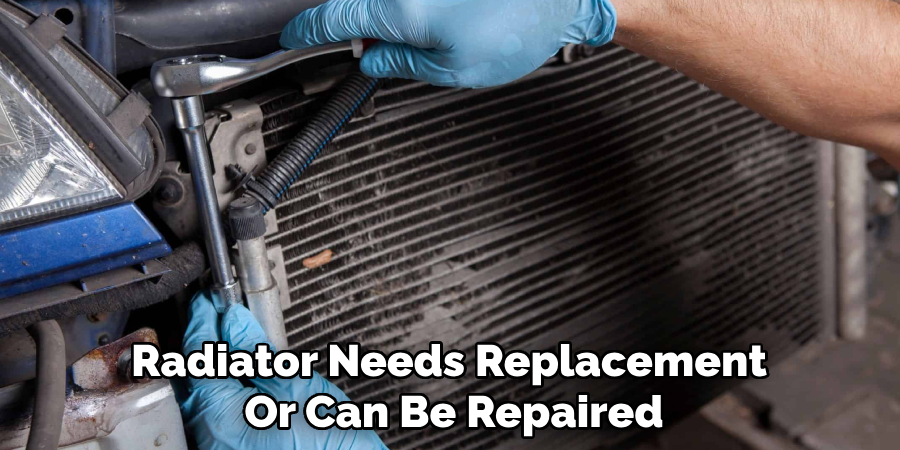

When to Replace the Radiator
A. Severe Damage: Widespread Corrosion or Cracks
If the radiator has multiple pinholes or large cracks, it may be beyond repair. In such cases, replacing the radiator is the best option to prevent overheating and engine damage. Severe corrosion or extensive cracking compromises the structural integrity of the radiator, making it incapable of effectively cooling the engine.
B. Frequent Leaks: Repeated Pinhole Leaks
If your radiator continues to develop pinhole leaks despite repairs, it may be time for a replacement. Frequent leaks indicate that the radiator material has weakened and is prone to further damage. Repeated patching can only serve as a temporary solution and may not hold up under pressure or high temperatures over time.
C. Consult a Professional: Mechanic Inspection
If you’re unsure whether the radiator needs replacement or can be repaired, consult a professional mechanic for a thorough inspection. An expert assessment can determine the extent of the damage and advise on the most effective course of action, whether it involves more complex repair techniques or replacing the radiator altogether.
Conclusion
Repairing a pinhole in a radiator is essential for maintaining vehicle performance and preventing engine overheating. Temporary fixes such as radiator stop-leak products and epoxy putty offer short-term solutions, providing quick relief until a permanent repair can be performed.
However, soldering remains the most reliable long-term fix, effectively sealing the pinhole and ensuring durability against pressure and temperature fluctuations. Preventative maintenance plays a vital role in reducing the incidence of pinhole leaks. Regularly flushing the cooling system, inspecting for signs of wear, and maintaining proper coolant levels are crucial steps that can safeguard the radiator’s longevity.
Knowing when to replace the radiator is just as important, especially in cases of severe damage or frequent leaks, to avoid further engine problems. Understanding how to fix pinhole in radiator issues empowers vehicle owners with the knowledge to maintain their radiators effectively, ensuring their vehicles continue to run smoothly.
