A fully functional dishwasher spray system ensures your dishes come out spotless and hygienically clean. When the spray system fails to operate properly, it can leave your plates, glasses, and utensils dirty and covered in food residue. Common symptoms of a dishwasher not spraying water include dishes not being thoroughly cleaned, water pooling at the bottom, and a noticeable lack of water movement during the wash cycle. This article will guide you through the troubleshooting and repair process using a systematic approach on how to fix dishwasher not spraying water.
We’ll cover diagnosing the issue, gathering the necessary tools and materials, and performing the required troubleshooting steps to restore your dishwasher’s optimal function.
Diagnosing the Problem
Identifying signs that your dishwasher is not effectively spraying water is the first step in troubleshooting. Indicators include dishes coming out dirty or with food residue, water pooling at the bottom of the dishwasher, and an apparent lack of water movement during the wash cycle. Additionally, you should check for any error codes or indicators displayed on the dishwasher’s control panel, as these can provide valuable clues about the underlying issue. Understanding the key components involved in the spray system is crucial for accurate diagnosis.
The main elements to focus on include the pump, which propels water through the system; the spray arms, which distribute the water over the dishes; and the filters, which prevent debris from clogging the system. By systematically examining these components, you can identify the root cause of the problem and determine the appropriate course of action to fix your dishwasher not spraying water.
Tools and Materials Needed
To effectively troubleshoot and repair a dishwasher that is not spraying water, you’ll need a few essential tools and materials to troubleshoot and repair a dishwasher not spraying water essential tools and materials. Begin with a screwdriver, pliers for disassembling components, and a multimeter for electrical checks. You will also need cleaning supplies such as brushes and vinegar to remove debris and clogs. Replacement parts like spray arms and pump seals may be necessary if components are found to be damaged. Optional but helpful items include a flashlight to illuminate hard-to-see areas and additional vinegar for thorough cleaning. Having these tools and materials on hand will streamline the repair process.
How to Fix Dishwasher Not Spraying Water: Troubleshooting Steps
Inspecting the Spray Arms
- Removing the Lower and Upper Spray Arms From the Dishwasher

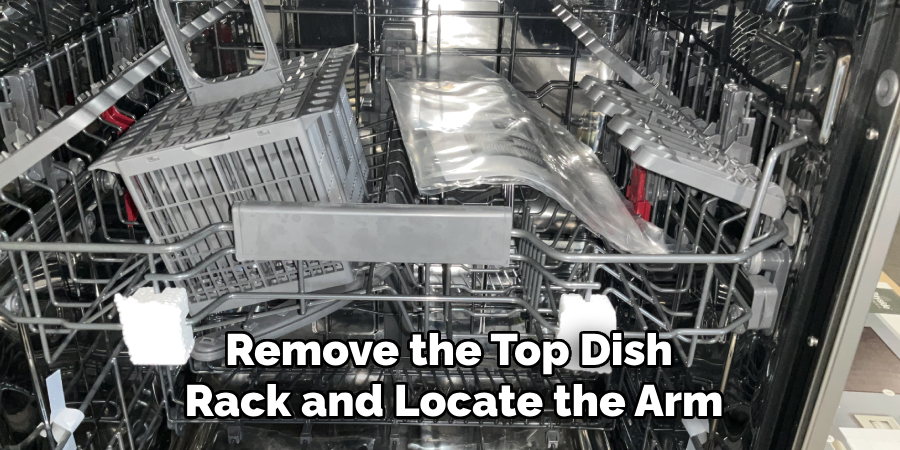

- To start, open the dishwasher door and remove the bottom dish rack to access the lower spray arm. Depending on your dishwasher’s model, the lower spray arm can usually be lifted or unscrewed from the base. For the upper spray arm, remove the top dish rack and locate the arm, which might be clipped in place or attached by a screw. Carefully remove both spray arms for inspection.
- Checking for Clogs or Debris Blocking the Spray Nozzles
- Once both spray arms are removed, examine the nozzles carefully. Debris, such as food particles, mineral deposits, or other blockages, can accumulate and obstruct water flow. Hold the spray arms under a bright light to get a clear view and use a toothpick or a similar tool to clear any visible clogs from the nozzles.
- Cleaning the Spray Arms Thoroughly With Vinegar or a Small Brush
- To ensure thorough cleaning, soak the spray arms in warm water and vinegar for about 30 minutes. This will help dissolve any mineral buildup and loosen stubborn debris. After soaking, use a small brush, like an old toothbrush, to scrub the nozzles and surfaces of the spray arms. Rinse them thoroughly with clean water before reinstalling them in the dishwasher.
Examining the Pump and Motor Assembly
- Accessing the Dishwasher’s Pump and Motor Assembly Beneath the Tub
- To avoid electrical hazards, begin by disconnecting the dishwasher from the power supply. Remove the lower access panel at the dishwasher’s front to reach the pump and motor assembly beneath the tub. Depending on your model, you may need to detach additional components to fully access the pump.
- Checking for Obstructions or Debris That May Hinder Pump Operation
- Inspect the pump area for any visible obstructions or debris affecting its performance. This includes checking the impeller, which moves water through the pump. Remove any foreign objects or debris you find around or inside the pump assembly.
- Testing the Pump Motor With a Multimeter to Ensure It is Receiving Power
- A multimeter will be used to test the pump motor for electrical continuity. Set the multimeter to the appropriate setting and connect the probes to the motor terminals. If the motor is not receiving power or shows unusual readings, it may be faulty and require replacement. Consult your dishwasher’s manual for specific testing procedures and continuity values.
Inspecting the Water Inlet Valve
- Locating the Water Inlet Valve on the Dishwasher
- The water inlet valve is typically located at the bottom front or side of the dishwasher. You may need to move or tilt the dishwasher to access it more easily. The valve is connected to the water supply line, so follow the line to locate the valve assembly.
- Testing the Valve for Continuity Using a Multimeter
- Disconnect the electrical connectors from the inlet valve before testing it with a multimeter. Set the multimeter to the ohms or resistance setting and place the probes on the valve’s terminals. As noted in your dishwasher’s manual, a healthy inlet valve will show continuity and a specific resistance range. The valve may be defective if the multimeter shows no continuity or an incorrect reading.
- Cleaning or Replacing the Water Inlet Valve if It is Faulty or Clogged
- If the inlet valve is clogged but still in working condition, clean it by soaking it in vinegar or using a small brush to remove debris. If the valve is faulty, order a replacement part specific to your dishwasher model and install it by reconnecting the water supply and electrical connectors. Ensure all connections are secure before testing the dishwasher.
How to Fix Dishwasher Not Spraying Water: Checking Filters and Drainage
Cleaning Filters
- Removing and Cleaning the Dishwasher’s Filters
- Begin by locating the filters at the bottom of the dishwasher, typically under the spray arm. These filters can usually be unscrewed or lifted out. Once removed, rinse the filters under warm water to remove any loose debris.
- Checking for Debris or Residue That May Obstruct Water Flow
- Examine the filters closely for any trapped food particles, grease, or mineral buildup. Use a soft brush or sponge to scrub the filters clean, ensuring that all mesh screens and filter parts are free from obstructions.
- Reinstalling Filters Properly After Cleaning
- After thoroughly cleaning the filters, place them back into their respective positions in the dishwasher. Ensure they are securely fastened to prevent any water flow issues during the dishwasher cycle.
Inspecting Drainage
- Ensuring the Dishwasher Drain Hose is Free From Kinks or Blockages
- Inspect the drain hose connected to the dishwasher, typically located behind or beneath the unit. Ensure the hose is not kinked, pinched, or clogged, as these issues can impede proper drainage.
- Checking the Garbage Disposal or Sink Drain for Any Clogs That Could Affect Drainage
- Check these components for blockages if your dishwasher is connected to a garbage disposal or sink drain. Clear any obstructions to ensure that water can flow freely from the dishwasher.
- Improving Dishwasher Drainage to Ensure Proper Water Circulation
- To enhance drainage, periodically perform a maintenance cycle with a dishwasher cleaner or vinegar. Regular cleaning and ensuring a clog-free drainage system will support optimal water circulation and overall performance.
Common Issues and Solutions
Low Water Pressure
- Checking Household Water Pressure and Ensuring It Meets Dishwasher Requirements
- Start by measuring your household water pressure using a pressure gauge. Most dishwashers’ optimal water pressure range is between 20-120 PSI (pounds per square inch). If the pressure is too low, you might need to adjust your home’s water supply setup or consult a plumber to resolve any pressure issues.
- Cleaning or Replacing the Dishwasher’s Inlet Valve Filter Screen if Clogged
- Over time, the inlet valve filter screen can become clogged with debris, affecting water flow. Disconnect the water supply and remove the inlet hose to access the filter screen. Clean it thoroughly or replace it if necessary to ensure that water can enter the dishwasher freely.
Faulty Pump or Motor
- Replacing the Dishwasher Pump or Motor if Tests Indicate It is Malfunctioning
- If testing with a multimeter reveals that the pump or motor is not functioning correctly, it may need to be replaced. Follow the manufacturer’s guidelines to purchase a compatible replacement part. Carefully remove the old pump or motor and install the new one, ensuring all connections are secure.
- Ensuring Proper Installation and Alignment of New Components
- During installation, ensure the new pump or motor is correctly aligned and securely fastened to prevent leaks and operational issues. Double-check all electrical and water connections. Once installed, run a test cycle to confirm that the dishwasher operates smoothly and effectively.
Testing and Maintenance Tips
Running a Test Cycle After Repairs
Once any repairs have been completed, it is crucial to run a test cycle to ensure that the dishwasher is operating correctly. Monitor the appliance throughout the cycle, paying close attention to the water spraying action and drainage process. Look for any leaks, unusual noises, or error messages indicating unresolved issues.
Performing Routine Maintenance
To maintain optimal performance, regularly clean the dishwasher filters and spray arms. Remove the filters and rinse them under warm water, scrubbing away any accumulated debris with a soft brush. Similarly, inspect and clean the spray arms, ensuring that their holes are unclogged and water can flow freely.
Monitoring Dishwasher Performance
Keep an eye on your dishwasher’s performance to catch any early signs of potential problems. Listen for unusual sounds and observe the cleanliness of dishes after each cycle. If you notice any changes, such as longer cycle times or incomplete washing, address the issues promptly to prevent more significant malfunctions. Regular maintenance and vigilant monitoring will extend the life of your dishwasher and ensure it continues to clean effectively.
Conclusion
Recapping the troubleshooting steps on how to fix dishwasher not spraying water, it’s critical to first inspect and clean the spray arms and filters, as blockages often impede water flow. Next, ensure the water inlet valve is functional and that there are no kinks or blockages in the drain hose. Also, verify that household water pressure meets the dishwasher’s requirements. Maintaining dishwasher components, such as regularly cleaning filters and spray arms, is essential for optimal performance and longevity. Additionally, routinely checking for any abnormalities in performance can preempt more significant issues.
While many common problems can be addressed with basic troubleshooting, complex repairs or replacements, such as those involving the pump or motor, may require professional assistance. Don’t hesitate to seek expert help to avoid causing further damage and to ensure your dishwasher continues to operate efficiently.
