How to Fix Axle Wrap

Axle wrap is an issue that can cause significant damage to your vehicle’s suspension system, and it’s important to take the necessary steps to fix it. Axle wrap occurs when the axle is under too much stress and begins to twist instead of staying in one place. This causes friction between the axle and other components, such as brakes and shocks, which can cause serious performance issues that may require costly repairs.

The advantages of fixing axle wrap are numerous. Firstly, it ensures your vehicle is safer to drive as the rear axle will be in better alignment. This also prevents excessive strain on other components, such as brakes, tires, and suspension parts. Additionally, it can increase your vehicle’s performance by providing more power to the wheels and allowing them to spin easier. In this blog post, You will learn how to fix axle wrap.

How to Fix Axle Wrap

Step by Step Processes for How to Fix Axle Wrap

Step 1: Inspect the Leaf Springs

The first step to fixing axle wrap is to inspect the leaf springs. Check for signs of wear and tear, such as rust, bent leaves, cracks in the metal, etc. If any of these signs are present, it could indicate that the leaf springs need to be replaced.

Step 2: Replace Worn Leaf Springs

If you determine that the leaf springs need to be replaced, then it’s time to do so. This can be done by purchasing new leaf springs for the vehicle or replacing them with aftermarket components.

After installing new leaf springs, the next step is strengthening them to prevent axle wrap from happening again. This can be done by adding either a ladder bar or a set of anti-wrap bars to the vehicle’s frame, which will help keep the leaf springs firmly in place and reduce axle wrap.

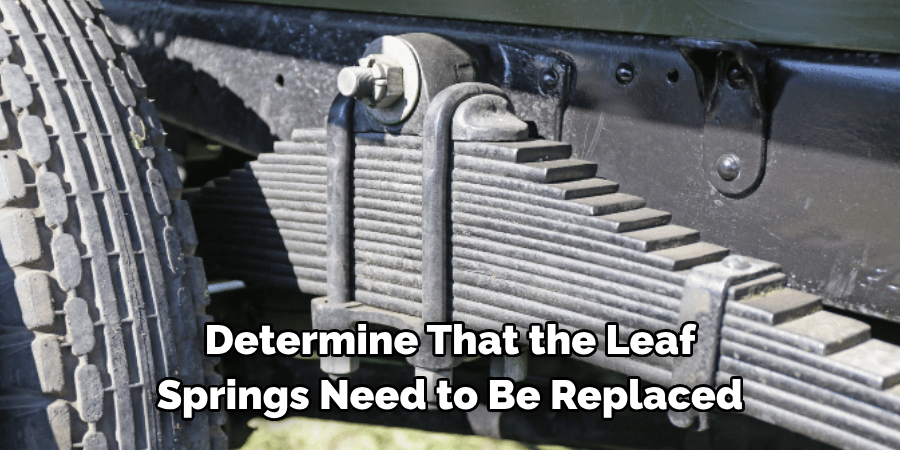

Determine That the Leaf
Springs Need to Be Replaced

Step 3: Install an Add-A-Leaf Kit

Another option for strengthening the leaf springs is with an add-a-leaf kit, which provides additional support to the leaf springs. This kit usually consists of several extra leaves that can be added to the existing spring pack, giving it more stiffness and reducing axle wrap.

In addition to strengthening the leaf springs themselves, it’s important to reinforce the hangers and shackles where they attach to the frame. This can be done by replacing the existing ones with aftermarket components or adding additional supports.

Step 4: Tighten U-Bolts & Nuts

The next step is to check and tighten the u-bolts and nuts that hold the axle in place. Over time, these bolts and nuts can become loose due to vibration from the road, which can cause axle wrap.

A weak torque arm or axle truss is another common issue that can lead to axle wrap. Ensure these components are in good condition and not worn down or loose. If necessary, replace them with aftermarket components for added strength and support.

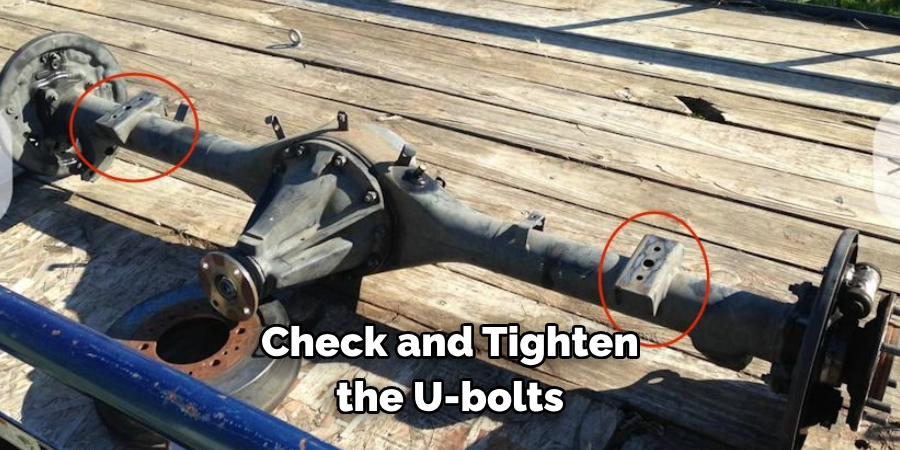

Check and Tighten the U-bolts

Step 5: Replace Shock Absorbers

Another important step in fixing axle wrap is to replace the shock absorbers. Old and worn-out shocks can cause extra wear and tear on the leaf springs, leading to increased axle wrap. After completing all of the above steps, it’s time to check the wheel alignment. Uneven tire wear can be caused by axle wrap, so ensuring all four tires are in proper alignment is important.

Step 6: Monitor & Adjust as Needed

Finally, monitoring the vehicle for any signs of axle wrap and adjusting as necessary is important. If the vehicle continues to have issues, it may be necessary to consult a professional mechanic or suspension specialist for more help.

Following these steps, you can fix the axle wrap and get your vehicle back on the road. With proper maintenance and care, you should be able to keep your vehicle running smoothly for years to come.

Tips for How to Fix Axle Wrap

  1. Always wear safety glasses and gloves when working on any vehicle repair.
  2. Make sure to support the vehicle securely before attempting to work on it.
  3. Inspect the axle for any damage, rust, or corrosion that could indicate a more serious problem with the axle assembly or suspension system.
  4. Use jack stands to raise the vehicle off the ground safely.
  5. Disconnect the sway bar from the axle if it is connected to a spring or shock absorber.
  6. Inspect the leaf springs and look for signs of wear, deformation, or other damage that could cause axle wrap issues.
  7. Tighten any loose bolts to reduce potential vibrations and abnormal tire wear.

Following these safety tips is essential for anyone attempting to fix axle wrap in their vehicle. Proper caution and care can resolve the issue without further damage or injury.

What Parts Should Be Inspected to Determine if There is an Issue With Axle Wrap?

When diagnosing axle wrap, inspecting several components of the suspension system is important. Front leaf springs and U-bolts should be checked for wear and tear. Additionally, the bushings on the axle/spring assembly and sway bars should also be examined for signs of damage or deterioration. It may also be useful to check the shock absorbers and ensure they are appropriately worn and intact. Finally, it is important to inspect the tires for any signs of uneven wear, which may indicate misalignment.

Inspecting Several Components

If all components seem to be in good condition, the next step would be to check the alignment and suspension geometry. Unevenly adjusted caster angles can cause axle wrap and should be set to manufacturer specifications. Additionally, the suspension geometry should be checked and adjusted if necessary. If all components are properly aligned, and in good condition, axle wrap may still be present due to a soft spring setup. Replacing or upgrading the existing springs with stiffer aftermarket parts may be beneficial.

What Can You Do to Prevent Axle Wrap From Happening in Your Vehicle?

If you want to prevent axle wrap from happening in your vehicle, there are a few steps that you can take. The first thing to do is ensure that your suspension components are properly installed and secured. Make sure they’re mounted correctly, as well as torqued properly. It’s also a good idea to upgrade your vehicle’s suspension components to aftermarket components, as they are often better designed for off-roading and will handle the strain of axle wrap better.

It’s also important to make sure that you have adequate traction in all four wheels of your vehicle. If one wheel has too much traction or grip, it can cause the axle to twist when going over an obstacle instead of absorbing the force. Adding traction-enhancing tires, wheel spacers, or wheel adapters can help evenly distribute the load and reduce axle wrap.

Finally, ensuring your suspension geometry is correct is also important to preventing axle wrap. Ensure all components are at the correct angle for maximum efficiency during off-roading activities.

Are There Other Maintenance Tips That Could Help Prevent Axle Wrap in the Future?

Yes, several proactive maintenance tips can help prevent axle wrap in the future. These include regularly checking all bolts and nuts on the axle, ensuring they are properly tightened to factory specifications. Additionally, inspect the U-bolts for any signs of fatigue or damage, and replace them if necessary.

Finally, keep a close eye on your suspension components, such as shocks and springs, to ensure they are undamaged and functioning properly. Regularly checking these components can help prevent axle wrap from reoccurring in the future. If you have any questions or concerns about fixing the axle wrap or how to prevent it from happening again, please consult a qualified mechanic or suspension specialist for more information.

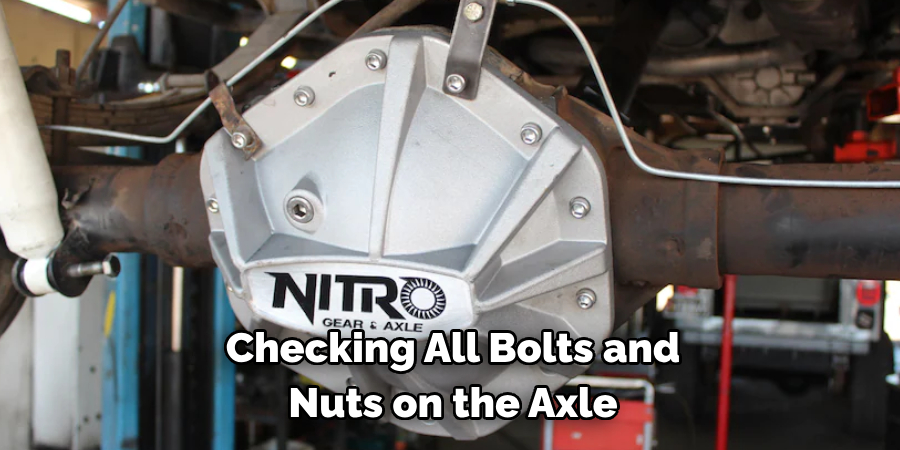

Checking All Bolts and
Nuts on the Axle

What Are the Potential Risks Associated With Axle Wrap if It is Not Properly Addressed?

Axle wrap is a serious problem that must be addressed quickly and correctly. If left unchecked, axle wrap can cause excessive tire wear, reduce handling capabilities, and even lead to catastrophic failure. It is important to address the issue properly to avoid these risks associated with axle wrap. The first step should be to inspect the vehicle and identify any potential issues with the axle or suspension components that could be causing excessive movement of the wheel during acceleration or braking.

Try to locate worn parts and replace them with new components if needed. Additionally, make sure all suspension components are securely attached and aligned correctly. If the axle appears in good condition, add support components like a differential cover brace or an axle wrap-specific suspension kit. Finally, use stiffer shocks and springs to reduce the amount of wheel movement during acceleration and braking.


In conclusion, axle wrap is a common issue among off-roading vehicles, but it doesn’t have to be a major problem. With the right technique and tools, you can easily fix this issue and keep your vehicle in top condition. The most important step is ensuring all the suspension system components work properly – including shock absorbers, sway bars, and links.

Once these components are in good condition, you can adjust the suspension system to reduce or eliminate axle wrap. Adjusting caster and pinion angles, preloading leaf springs, upgrading coil overs, and adding traction bars can all help reduce or stop axle wrap completely. This article has been beneficial for learning how to fix axle wrap. Make Sure the preventive measures are followed chronologically.
