A rattling muffler can be more than just an annoying noise—it might indicate underlying issues with your vehicle’s exhaust system. Ignoring the problem can lead to more severe damage or increased repair costs. Fortunately, addressing a rattling muffler is often a straightforward process that you can handle on your own with the right tools and a little guidance.
This guide on how to fix a rattling muffler will walk you through the common causes of a rattling muffler and the steps to fix it effectively.
Why is My Muffler Rattling?
Before diving into the fixes, it’s essential to understand why your muffler might be rattling in the first place. Here are a few common reasons:
Loose or Damaged Exhaust Hangers:
The exhaust system is held in place by rubber hangers that can wear out or become loose over time, causing the muffler to rattle. This issue is especially prevalent in older vehicles.
Corrosion:
Exhaust systems are exposed to heat, moisture, and road salt, which can cause corrosion over time. When the metal components of the exhaust system corrode, they can become loose and create a rattling noise.
Loose or Damaged Heat Shield:
The heat shield on your muffler helps protect other components from excess heat. If it becomes detached or damaged, it can vibrate against the muffler and create a rattling sound.
Exhaust Leak:
A leak in your exhaust system can lead to a rattling noise, especially if it’s located near the muffler. This leak can be caused by a loose connection or a hole in the exhaust pipe.
Needed Materials
To fix a rattling muffler, you’ll need the following materials:
Jack and Jack Stands:
To access the exhaust system, you’ll need to raise your vehicle with a jack and secure it with jack stands.
Wrenches:
Depending on the type of exhaust hangers and connections in your vehicle, you might need different sizes of wrenches to loosen or tighten them.
Replacement Hangers (if needed):
If the issue is a loose or damaged exhaust hanger, you might need to replace it. Make sure to purchase the correct size and model for your vehicle.
Exhaust Clamps (if needed):
In some cases, an exhaust clamp can be used to secure loose components instead of replacing them entirely.
10 step-by-step Guidelines on How to Fix a Rattling Muffler
Step 1: Prepare Your Work Area
Before you begin working on your vehicle, it’s important to ensure your work area is safe and organized. Park your car on a level surface and engage the parking brake to prevent any movement while you’re working. Gather all the necessary tools and materials listed above and keep them within easy reach. If you’re working outdoors, ensure the area is well-lit and free of any hazards.
For added safety, consider wearing gloves and safety goggles to protect yourself from sharp edges or debris.
Step 2: Lift Your Vehicle
Use the jack to lift your vehicle off the ground, allowing access to the underside where the exhaust system is located. Refer to your vehicle’s owner’s manual to identify the correct jacking points—this is crucial to avoid damaging your car. Once the vehicle is raised, position the jack stands securely under the recommended support points to stabilize it.
Double-check that the car is stable before proceeding, and never rely solely on the jack to support the vehicle while you work underneath it. Safety is paramount during this step.
Step 3: Locate the Source of the Rattling Noise

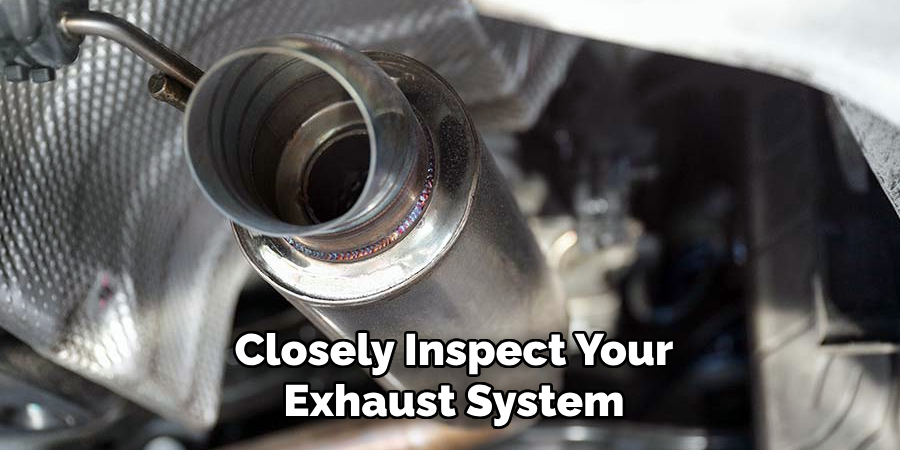

With the vehicle safely raised and secured, it’s time to locate the source of the rattling noise. Closely inspect your exhaust system, starting from the muffler and working towards the engine. Look for any visible damage or loose components that could be causing the issue.
The most common areas for rattling noises are the exhaust hangers, heat shields, and exhaust connections.
Step 4: Check the Exhaust Hangers
If you see that one or more of your exhaust hangers are damaged or missing, it’s time to replace them. Begin by removing the old hanger(s) using a wrench. Then, install the new hanger(s) by sliding them onto the appropriate mounting location and securing them with bolts or nuts.
It’s important to make sure the hangers are tightly fastened to prevent any future rattling.
Step 5: Inspect the Heat Shield
If you notice that your heat shield is loose or damaged, it can be a quick fix. Use a wrench to tighten any bolts or nuts that are holding the heat shield in place. If the shield is severely corroded or damaged, it might need to be replaced entirely.
But before you remove the heat shield, make sure it’s not connected to any other components that could potentially be damaged.
Step 6: Tighten Loose Connections

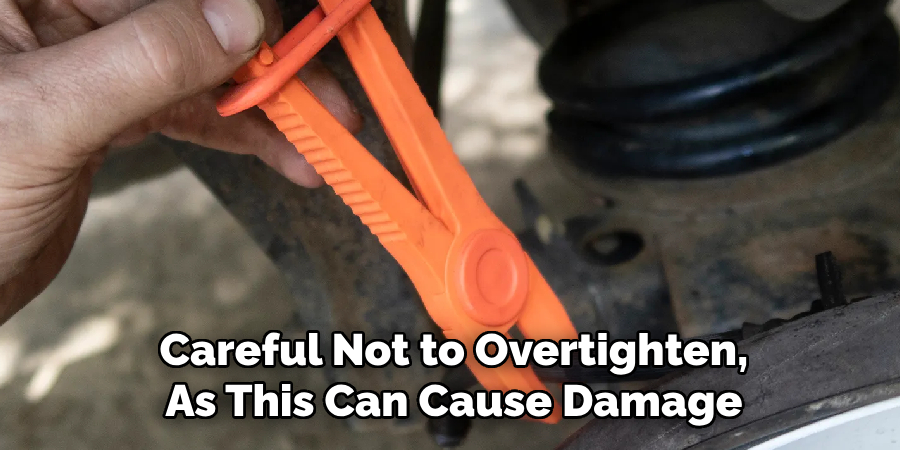

Loose exhaust connections are a common cause of rattling noises. Use your wrench to tighten any loose clamps or bolts along the exhaust system. Be careful not to overtighten, as this can cause damage.
It’s also a good idea to inspect the exhaust pipe for any holes or cracks that might need to be patched up.
Step 7: Check for an Exhaust Leak

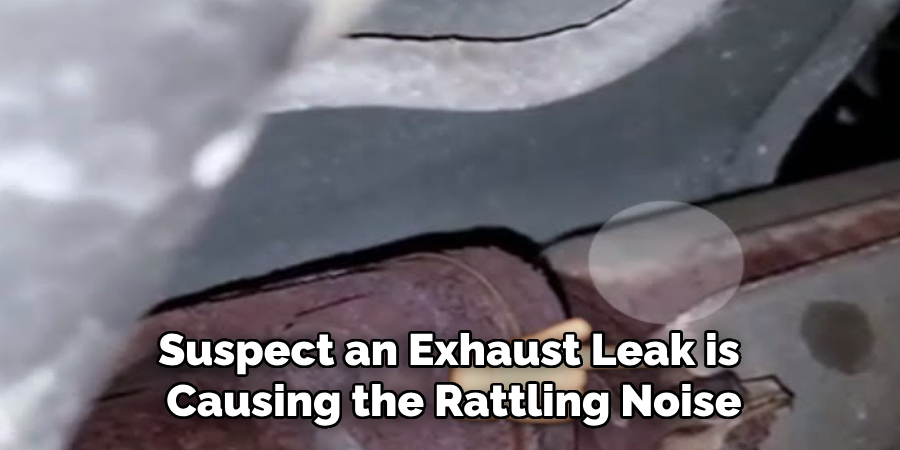

If you suspect an exhaust leak is causing the rattling noise, there are a few ways to check for it. One method is to start your vehicle and listen carefully for any hissing sounds near the exhaust system.
Another way is to use a can of carburetor cleaner (or soapy water) and spray it around the connections and joints in your exhaust system while the engine is running. If you notice bubbling or foaming, it’s a sign of a leak that needs to be fixed.
Step 8: Patch Up Any Holes or Cracks
If you do happen to find a hole or crack in your exhaust pipe, it’s best to patch it up before continuing. Depending on the size and location of the damage, there are various methods for repairing holes and cracks in an exhaust pipe. You can use muffler repair tape, epoxy putty, or high-temperature sealant.
You can also take your vehicle to a professional mechanic for a more permanent fix, such as welding or replacing the damaged section of the pipe.
Step 9: Replace Damaged Components
If you’ve determined that a damaged component, such as a heat shield or exhaust pipe, is causing the rattling noise, then it’s time to replace it. Refer to your vehicle’s manual for instructions on how to remove and install specific components. It’s always best to use high-quality replacement parts for a long-lasting fix.
But if you’re not confident in your ability to replace the component yourself, it’s best to take your vehicle to a trusted mechanic.
Step 10: Lower Your Vehicle and Test Drive
Once you’ve completed all necessary repairs, lower your vehicle from the jack stands and remove them. Start your car and take it for a test drive to ensure that the rattling noise is gone. If you still hear the noise, double-check all connections and components to make sure everything is secure.

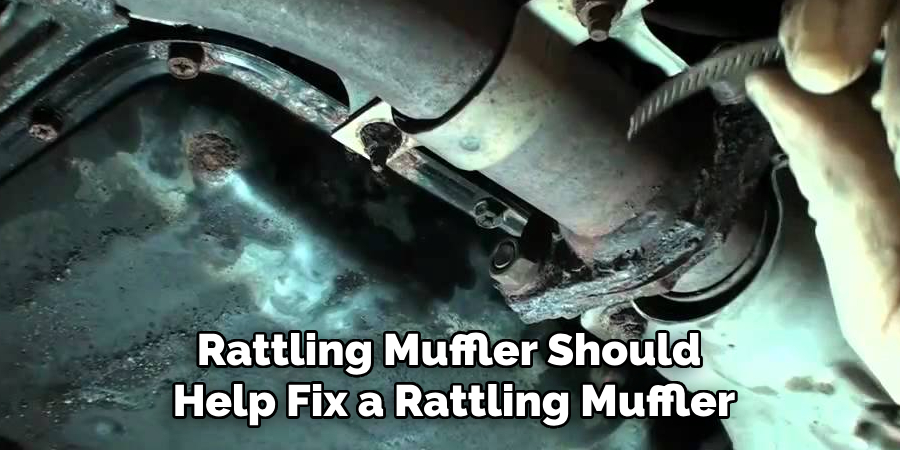

Following these steps on how to fix a rattling muffler should help fix a rattling muffler and ensure your vehicle is running smoothly and quietly once again. Don’t ignore any unusual noises from your exhaust system, as they could be signs of underlying issues that can lead to more significant problems in the future. Regular inspections and maintenance can help prevent expensive repairs down the road. Remember to always prioritize safety when working on your vehicle and seek professional help if needed. Happy fixing!
Frequently Asked Questions
Q1: Can I Fix a Rattling Muffler Myself?
A1: Yes, you can fix a rattling muffler yourself as long as you have the necessary tools and knowledge. However, it’s always a good idea to consult your vehicle’s manual or seek professional help if you’re not confident in your abilities.
Q2: What Causes a Rattling Noise in My Muffler?
A2: There are several possible causes for a rattling noise in your muffler, including damaged exhaust hangers, loose heat shields, or an exhaust leak. It’s essential to inspect and address these issues promptly to prevent further damage to your vehicle.
Q3: Can I Drive My Car with a Rattling Muffler?
A3: It’s not recommended to drive your car with a rattling muffler as it could be a sign of underlying issues that can lead to more significant problems. It’s best to address the issue and fix it before driving your vehicle again.
Q4: How Often Should I Inspect My Muffler for Issues?
A4: It’s a good idea to inspect your muffler and exhaust system for any issues regularly, such as during routine oil changes or whenever you hear unusual noises. Regular maintenance can help prevent bigger and more expensive problems in the future.
Conclusion
Fixing a rattling muffler may seem like a daunting task, but with the right tools, knowledge, and approach, it can be an achievable DIY project.
By systematically inspecting your exhaust system and addressing issues such as loose components, damaged hangers, or leaks, you can restore your vehicle to a quieter and more efficient state. Regular maintenance and prompt repairs not only extend the life of your car but also prevent more costly damages down the road.
Remember to always prioritize safety while working on your vehicle, and don’t hesitate to consult a professional mechanic if necessary. Taking care of your car ensures a smoother, quieter, and safer driving experience for years to come. Thanks for reading this article on how to fix a rattling muffler.
