Dealing with oil leaks can be a frustrating experience for any vehicle owner, especially when it hits a crucial component like the oil pan. Understanding how to fix a hole in an oil pan is essential for preventing further damage to your engine and can save both time and money.
Oil pans are vulnerable to wear and tear, particularly if you frequently drive on rough terrain or encounter road debris. While a temporary fix might suffice in emergencies, a permanent repair ensures the longevity and efficiency of your vehicle. This guide provides comprehensive steps, from diagnosing the problem to executing a successful repair, whether temporarily with epoxy or permanently with a metal patch.
It also emphasizes the significance of regular maintenance and inspections in preventing future damages. By following these guidelines, vehicle owners can confidently manage oil pan disruptions and maintain their engines optimally.
Identifying the Problem: Symptoms and Diagnosis
A. Signs of a Leaking Oil Pan
- Oil Spots Under the Car: One of the first signs of a leaking oil pan is noticing oil puddles or spots under your parked vehicle. These oil spots are clear indicators that there is a breach in the oil pan’s integrity.
- Low Oil Level Warning Light: If your vehicle’s dashboard consistently shows a low oil level warning, it could indicate a leak in the oil pan. Monitoring the oil level is crucial to avoid further engine damage.
- Burning Oil Smell: A distinctive burnt oil smell can occur when leaking oil comes into contact with hot engine components. This is a serious sign indicating an oil leak that needs immediate attention.
B. Types of Oil Pan Damage
- Minor Holes and Cracks: These are often the result of corrosion or small road debris impacts. Minor holes and cracks are fairly common and, in many cases, can be repaired without replacing the entire oil pan, making it a manageable issue for the vehicle owner.
- Major Punctures: Major punctures can create significant holes in the oil pan resulting from collisions or impacts with large debris. These often require more extensive repairs or complete replacement of the oil pan to restore the vehicle’s function.
C. Initial Inspection
- Locating the Leak: Safely lift the vehicle using a jack and jack stands to thoroughly inspect the oil pan. Look for visible holes, cracks, or any signs of leakage, and clean the area with a degreaser to pinpoint the source of the leak effectively.
- Check for Other Issues: Ensure components like the oil pan gasket and drain plug are securely fastened. Loose or improperly installed parts can also lead to oil leaks, which, if unchecked, can cause substantial damage to the vehicle.
Tools and Materials Needed for Repair
A. Temporary Repair Materials
- Epoxy or Oil-Resistant Sealant: Ideal for short-term fixes, epoxy can temporarily patch small holes, preventing oil leakage and allowing time to prepare for a permanent solution.
- Degreaser: Used to clean the oil pan surface thoroughly before applying any repair materials, ensuring better adhesion and effectiveness of the temporary fix.
B. Permanent Repair Materials
- Oil Pan Repair Kit: These kits often include metal patches and epoxy suitable for larger or long-lasting repairs, providing a more durable solution to oil pan damage.
- Metal Sheet or Patch: After preparing the area, a metal patch can be securely affixed over the hole for permanent repairs. This offers a long-term fix to restore the oil pan’s integrity.
C. Basic Tools
- Socket Set and Wrench: Essential for removing bolts and securing the oil pan if it needs to be taken off during the repair process.
- Sandpaper or Wire Brush: Utilized to clean and roughen the surface, ensuring better adhesion of sealant or patches for both temporary and permanent repairs.
How to Fix a Hole in An Oil Pan: Temporary Fixes for Small Holes
Step 1: Clean the Damaged Area
Degrease the Area: Use a degreaser to clean the oil pan thoroughly, removing all dirt, oil, and grime. This preparation is crucial as it ensures that any sealant or patch applied will adhere properly to the surface. Take your time to clean the area meticulously, paying attention to any stubborn grime that might interfere with the repair.
Dry the Surface: After cleaning, ensure the area is completely dry. Residual oil can prevent repair materials from sticking effectively, compromising the success of your fix. Use a clean cloth to wipe the surface or allow it to air dry before proceeding to the next step.
Step 2: Apply Epoxy or Sealant
Mix the Epoxy: If you’re using epoxy, start by mixing it according to the manufacturer’s instructions. This typically involves blending two components to activate the adhesive properties. Make sure the mixture is uniform and ready for application.
Apply a Generous Amount: Use a putty knife or your fingers to apply a generous amount of epoxy directly onto the hole or crack in the oil pan. Spread the epoxy evenly over the damaged area, ensuring complete coverage. This will help create a strong, effective seal.
Let It Cure: After application, allow the epoxy to cure for the recommended amount of time, usually several hours. Avoid starting the car during this period, as any pressure might compromise the repair. A fully cured epoxy ensures durability, giving you peace of mind until a permanent solution is implemented.
Step 3: Monitor for Leaks
Check the Repair: Once the epoxy has fully dried, run the engine for a short time to check for any signs of oil leaks. Observe the repaired area closely. If no leaks are visible, you have successfully performed a temporary fix.
Note the Repair Lifespan: Remember that this is a temporary solution designed to buy you some time until a permanent repair can be made. Regularly inspect the area to ensure the integrity of the repair and plan for a long-term fix to avoid future issues.
How to Fix a Hole in An Oil Pan: Permanent Repairs
Step 1: Drain the Oil
Position an Oil Pan: Place a suitable container beneath the oil pan to capture the oil as it drains from the engine. Carefully remove the drain plug, ensuring all the oil is directed into the container. It’s important to wait until the oil flow ceases completely before proceeding with the next steps.

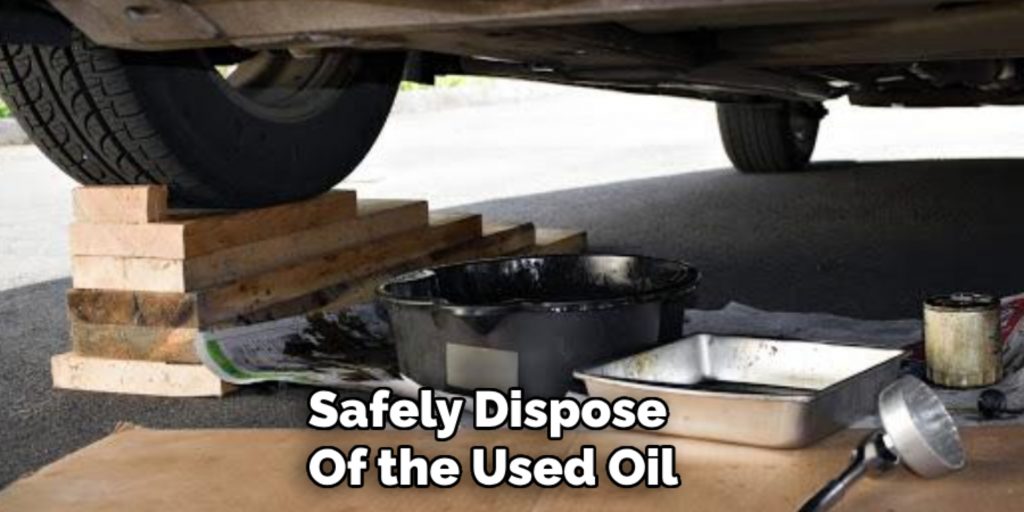

Proper Disposal: Safely dispose of the used oil by following local environmental regulations. If discarded improperly, it is harmful to the environment, so take it to a designated recycling or disposal facility.
Step 2: Remove the Oil Pan
Unbolt the Oil Pan: Use a socket wrench to detach the bolts securing the oil pan to the engine’s underside. Exercise caution, as residual oil might be left in the pan and could spill. Gently loosen each bolt in a crisscross pattern to avoid warping the pan.

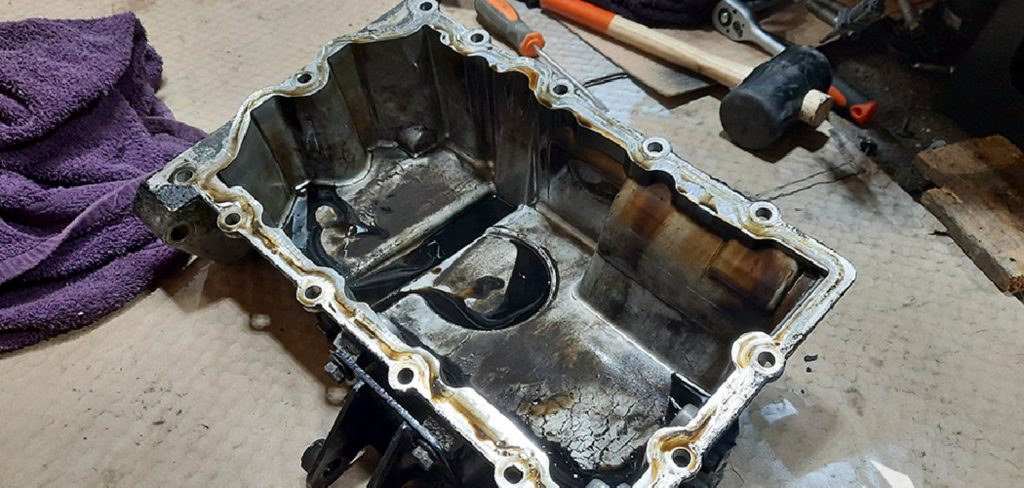

Inspect for Damage: Once the oil pan is detached, carefully inspect it for further damage, such as additional cracks, corrosion, or punctures that were not visible initially. Also, examine the oil pan gasket. A compromised gasket may also be a source of oil leakage and may require replacement to prevent future issues.
Step 3: Patch the Hole
Prepare the Surface: Use sandpaper or a wire brush to clean the region around the hole. This ensures a smooth and clean surface for the patch to adhere properly, eliminating rust and any remaining oil residues that might hinder adhesion.
Apply a Metal Patch: Cut out a piece of metal sheet sized appropriately to cover the hole. Depending on the materials of the oil pan, affix the patch over the cleaned area using an oil-resistant adhesive or welding equipment. This step is critical for creating a robust patch that will last.
Let It Cure or Cool: If you opted for an adhesive method, allow the patch to cure for the recommended duration to ensure complete adhesion. Alternatively, if welding was used, ensure that the metal is adequately cooled and the bond is secure.
Step 4: Reinstall the Oil Pan
Replace the Gasket: Fit a new oil pan gasket to guarantee a tight seal between the oil pan and the engine, minimizing the chances of leaks.

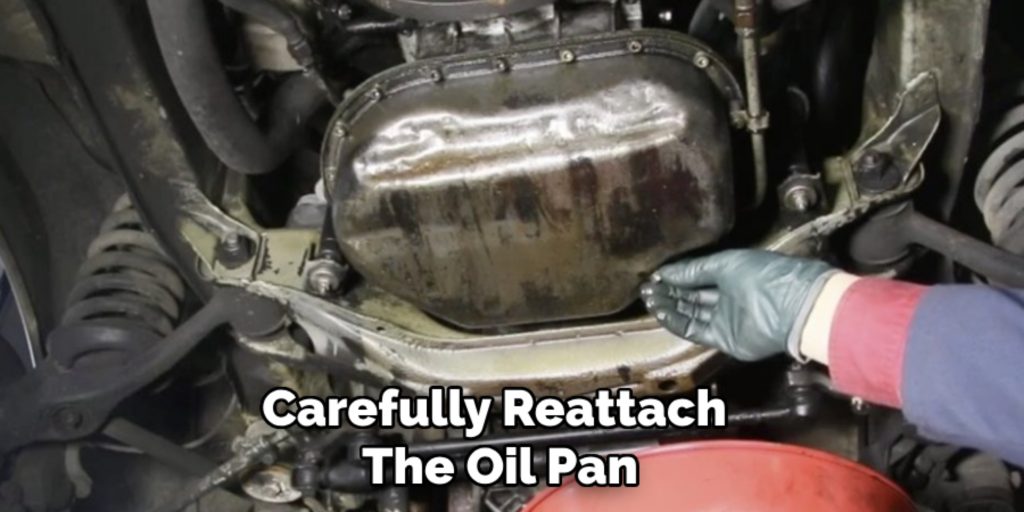

Bolt the Oil Pan Back: Carefully reattach the oil pan by evenly tightening the bolts using a crisscross pattern. This ensures even pressure and a solid seal, reducing the risk of warping or oil leakage. After securing the pan, you can refill the engine with fresh oil and complete the repair.
Refilling Oil and Testing the Repair
Step 1: Refill the Engine Oil
Add Fresh Oil: Once the oil pan is securely reinstalled, replace the oil drain plug to prevent any oil from escaping. Refill the engine with the appropriate amount and type of motor oil as specified by your vehicle’s manufacturer. Using the correct oil specified in your vehicle’s manual is crucial to ensure optimal engine performance and protection.
Check the Oil Level: Once the oil is added, use the dipstick to verify that the oil level is at the correct mark. It’s important to avoid overfilling, as excess oil can lead to increased crankcase pressure and potential engine damage. Adjust the oil level as necessary for precision.
Step 2: Test for Leaks
Run the Engine: Start the engine and allow it to run for several minutes while closely monitoring the oil pan. This step is critical in ensuring no leaks are present around the newly installed patch or gasket. Carefully observe for any signs of oil seeping out.
Inspect Under the Car: After turning off the engine, thoroughly inspect the ground beneath the car for any signs of oil leakage. If the ground remains clean and no leaks are detected, you can conclude that the repair was successful and that the vehicle is ready for regular use.
Preventing Future Oil Pan Damage
A. Regular Inspections
Check for Leaks: Regularly inspect the underside of your vehicle for any signs of oil leakage. Early detection of small leaks can prevent the development of larger, more costly damages. Make inspections a routine part of your vehicle maintenance schedule to address potential issues promptly and efficiently.
B. Install a Skid Plate
Protect the Oil Pan: If you frequently drive on rough or uneven roads, consider installing a skid plate to shield the oil pan from road debris and impacts. A skid plate acts as a protective barrier, mitigating risks associated with direct contact with obstacles and helping to prolong the lifespan of your oil pan.
C. Avoid Hitting Curbs or Debris
Safe Driving: Exercise caution by being mindful of road hazards, and avoid driving over large debris or curbs that could potentially damage the oil pan. Practicing safe driving techniques protects the oil pan and reduces the likelihood of damage to other vehicle components.
When to Seek Professional Help
A. Complex Damage
If the hole is too large or the oil pan is severely damaged, it may need to be replaced by a professional mechanic. Extensive damage can compromise the pan’s structural integrity, making a professional evaluation crucial to determining the best course of action.
B. Lack of Tools or Experience
If you’re uncomfortable with the repair process or lack the necessary tools, it’s best to consult a mechanic to ensure the repair is done correctly. Professional mechanics have the expertise and equipment needed to perform reliable and long-lasting repairs, minimizing the risk of future issues.
Conclusion
Fixing a hole in the oil pan is an essential maintenance task that can be temporary or permanent. Temporary fixes, such as the application of epoxy, can buy you time, but a more durable solution involves using a metal patch.
Regular inspection and timely repairs are vital in preventing more severe engine damage. Maintaining the health of your oil pan and engine components through routine checks can extend the life of your vehicle while preventing expensive repairs.
When dealing with complex damage or if “how to fix a hole in an oil pan” is beyond your skill level, it is advisable to consult a professional mechanic. This ensures not only the safety of your vehicle but also its longevity, allowing you to enjoy a smoother and more reliable driving experience.
