How to Fix a Carburetor on A Lawn Mower

A well-functioning carburetor is essential for a lawn mower’s smooth operation and overall performance. The carburetor’s primary role is to mix air and fuel in the correct ratio to ...

/

Vehicle

Written By :

Naomi Wilson

Expert Author

A well-functioning carburetor is essential for a lawn mower’s smooth operation and overall performance. The carburetor’s primary role is to mix air and fuel in the correct ratio to power the engine efficiently. However, carburetors can develop common issues such as clogged jets, fuel residue buildup, or an improper air-to-fuel mixture over time. These problems often lead to rough idling, sputtering, or even engine failure, significantly affecting the mower’s reliability and effectiveness.

Fortunately, learning how to fix a carburetor on a lawn mower can be a straightforward task with the proper tools, knowledge, and precautions. This article provides a step-by-step guide to diagnosing, cleaning, repairing, and reinstalling a lawn mower carburetor. Following these instructions, homeowners can prevent costly repairs and restore their mower’s optimal performance, keeping their yard maintenance on track without hassle.

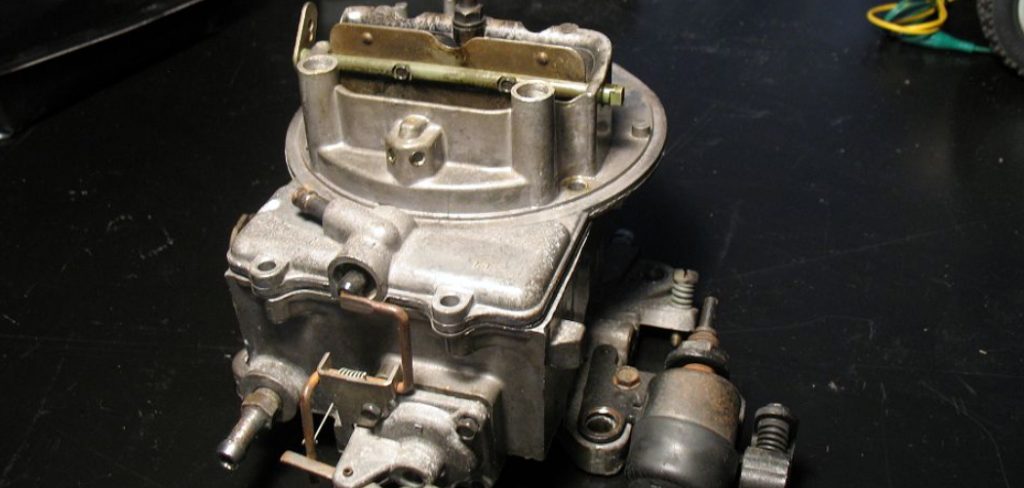

How to Fix a Carburetor on A Lawn Mower

Understanding the Carburetor’s Function

A lawn mower carburetor is a critical component ensuring the engine receives the right air and fuel for combustion. Proper combustion is vital for producing the power needed to cut grass efficiently. To understand its operation, it is essential to become familiar with the key parts of a carburetor:

  • Fuel inlet: Channels fuel from the tank into the carburetor.
  • Float: Regulates the fuel level within the carburetor.
  • Jet: Delivers a precise amount of fuel into the air stream.
  • Needle valve: Controls the flow of fuel into the float chamber.
  • Choke: Limits air intake to enrich the fuel mixture for cold starts.
  • Throttle: Adjusts the air/fuel mixture to control engine speed.

These components mix air and fuel in the ideal ratio needed for optimal performance. Any disruption in this balance can lead to inefficient combustion and engine problems.

Symptoms of a Malfunctioning Carburetor

A failing carburetor can cause noticeable issues such as engine sputtering, difficulty starting, poor idling, or stalling during operation. Identifying these symptoms early is crucial to diagnosing and addressing the problem effectively.

Tools Needed

To repair a carburetor, you’ll need basic tools such as screwdrivers, pliers, a wrench set, and a small brush for cleaning. Additionally, a quality carburetor cleaner is essential for removing residue and debris. Remember to prioritize safety—equip yourself with gloves and eye protection to prevent accidental injury while working on the engine.

Troubleshooting the Carburetor

Troubleshooting a carburetor begins with identifying the root cause of the problem by observing the symptoms. If the engine is sputtering, check for dirt or clogging in the jets, as these are common culprits that disrupt the fuel flow. Difficulty starting or poor idling could indicate an improperly adjusted idle mixture screw or air-fuel mixture imbalance. Stalling during operation might result from vacuum leaks or a malfunctioning float chamber.

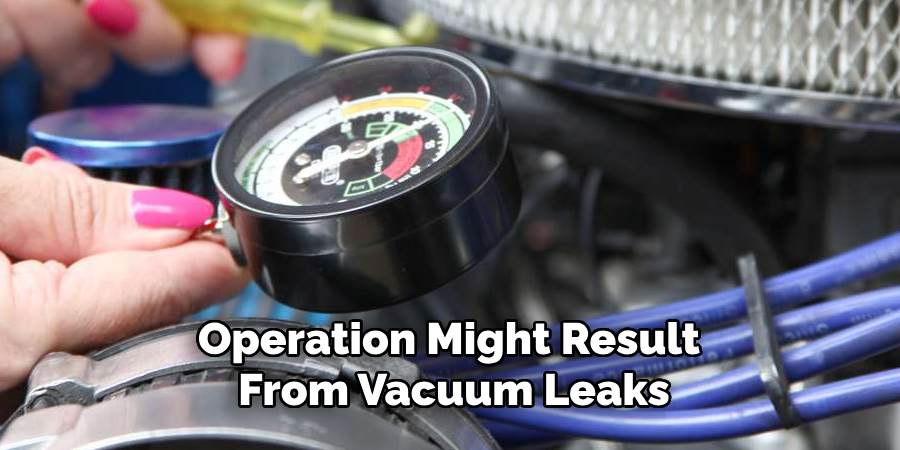

Operation Might Result
From Vacuum Leaks

Start by visually inspecting the carburetor for visible dirt, cracks, or loose connections. Ensure all hoses and gaskets are secure and free of wear. Next, test the jets, float, and choke mechanisms for optimal movement and verify that there are no blockages. Use a carburetor cleaner to flush out debris that might interfere with performance. If the problem persists, check the fuel line and filter to ensure they supply fuel properly.

Finally, carefully adjust the idle and mixture settings, following the manufacturer’s specifications. It’s essential to make incremental adjustments and test the engine after each change to gauge improvement. Regular maintenance and cleaning can prevent most carburetor issues and extend its lifespan. If the troubleshooting steps fail to resolve the issue, seek professional help to avoid further complications.

Removing the Carburetor from the Lawn Mower

Disconnecting the Spark Plug

Disconnect the spark plug wire to prevent accidental starts during the repair. This critical safety step ensures the engine does not accidentally engage while you’re working. Additionally, confirm the engine is completely cool before handling the carburetor to avoid burns.

Removing the Air Filter and Housing

Unscrew or unclip the air filter housing to gain access to the carburetor. Carefully remove the air filter and set it aside. Inspect the filter for any signs of clogging or dirt and clean it if necessary before reinstallation. This step helps maintain clean airflow to the engine for better performance.

Disconnecting Fuel Lines and Linkages

Gently disconnect the fuel line from the carburetor using a pair of pliers. Prepare for potential fuel spills by having a container or a rag on hand to catch any escaping fuel. Observe and note the position of any throttle and choke linkages that need to be detached so you can reconnect them precisely during reassembly.

Unscrewing the Carburetor

Reconnect Them Precisely
During Reassembly

Using the appropriate wrench or screwdriver, carefully unscrew the carburetor from the engine. While removing it, do not damage any gaskets or associated parts. It is helpful to organize screws, nuts, and linkages as you disassemble the carburetor, which will make the process of reassembly smoother and more efficient.

How to Fix a Carburetor on A Lawn Mower: Cleaning the Carburetor

Disassembling the Carburetor

To begin cleaning, remove the float bowl at the carburetor’s bottom. This will expose the internal components, including the float, needle valve, and main jet. Carefully take out each part and inspect them for signs of debris, fuel residue, or wear that might affect performance. Handle these delicate parts with care to avoid causing any damage that could jeopardize their functionality.

Cleaning the Carburetor Parts

Use a high-quality carburetor cleaner to spray into all small holes, jets, and crevices to remove clogs and residue. A small brush or toothbrush can help scrub away stubborn buildup on these components. Pay special attention to the fuel inlet and the needle valve, as these are critical for proper fuel flow. Inspect each part for wear or damage and replace any that are no longer functional to ensure optimal operation.

Cleaning the Float Bowl

Gasket is Intact
And Not Cracked

The float bowl often collects old fuel, sediment, and deposits over time. Wash it thoroughly using carburetor cleaner or an appropriate solvent, removing all buildup. After cleaning, check that the bowl’s gasket is intact and not cracked or deteriorated. If the gasket is worn, replace it to prevent fuel leaks when reassembled.

Checking the Jets and Needle Valve

The jets and needle valves play a crucial role in fuel regulation. Clean out the main and idle jets, ensuring they are clogs-free. If either jet is particularly damaged or obstructed beyond cleaning, consider replacing it with a compatible part. Similarly, test the float valve for proper movement to ensure it operates freely, and clean it with a small brush if necessary to remove any dirt or residue impeding its function.

Reassembling the Carburetor

Once all components are clean, reassemble the carburetor by replacing each part in the reverse order of removal. Ensure all pieces are fitted securely, paying careful attention to the proper alignment of the float and needle valve. Attach the float bowl, using a new gasket if necessary, to create a tight and secure seal.

Tip: Thorough cleaning of the carburetor improves fuel flow, enhances engine performance, and resolves many common carburetor-related issues. Taking the time to methodically clean and inspect each part can extend the life of the carburetor and the engine.

Reinstalling the Carburetor

Attaching the Carburetor Back to the Engine

Carefully align the carburetor with the mounting holes on the engine, ensuring it is properly positioned. Secure it using the screws removed during disassembly, tightening them evenly to avoid misalignment. Be cautious not to overtighten, as this can damage the mounting surfaces or threads.

Reconnecting the Fuel Line and Linkages

Reconnect the fuel line to the carburetor, ensuring the connection is tight and leak-free. Inspect the fuel line for any cracks or damage before attaching it. Next, reattach the throttle and choke linkages, using your notes or photos from the disassembly process as a guide. Ensure each linkage is connected correctly and moves smoothly.

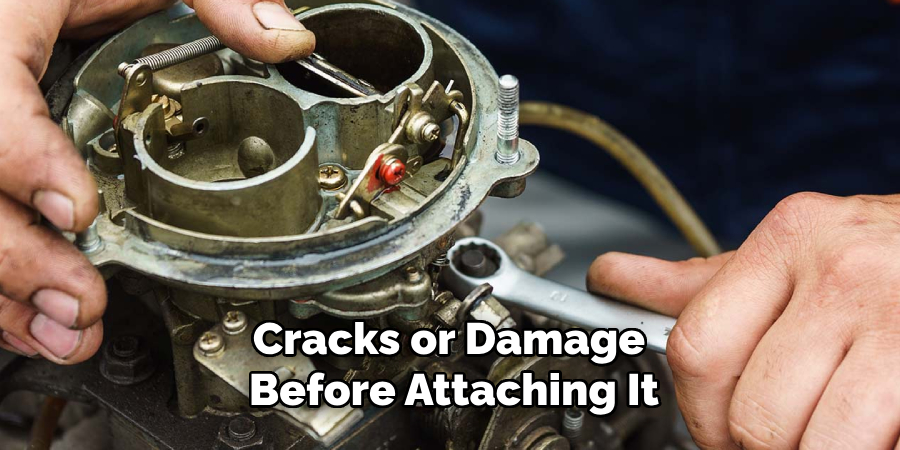

Cracks or Damage
Before Attaching It

Reinstalling the Air Filter and Housing

Install the air filter back into its housing, ensuring that it is clean and correctly seated. Secure the housing cover in place, confirming that all screws or clips are fastened tightly. A properly fitted air filter is crucial for optimal engine performance and protection.

Reattaching the Spark Plug

Finally, reconnect the spark plug wire, pressing it firmly onto it to ensure a secure connection. While doing so, check the spark plug’s condition; if it appears damaged or worn, replace it with a new one. A good spark plug ensures reliable engine ignition and performance.

Testing the Lawn Mower

Starting the Engine

Turn on the fuel valve (if your lawn mower has one) and set the choke to the appropriate position. Make sure the throttle is set correctly, then pull the starter cord or use the electric starter to power the engine. Pay attention to how the engine starts, as it can provide clues about the success of the repair process.

Checking for Proper Functioning

Once the engine is running, observe its behavior carefully. It should start easily and operate smoothly without any unusual sputtering, hesitation, or stalling. If the engine exhibits any issues, they may indicate the need for additional adjustments or further maintenance.

Adjusting the Carburetor

If the engine doesn’t idle smoothly, locate the carburetor’s idle screw or main jet and adjust it slightly to improve the performance. Adjust the settings in small increments, testing after each change to achieve a smooth and steady idle.

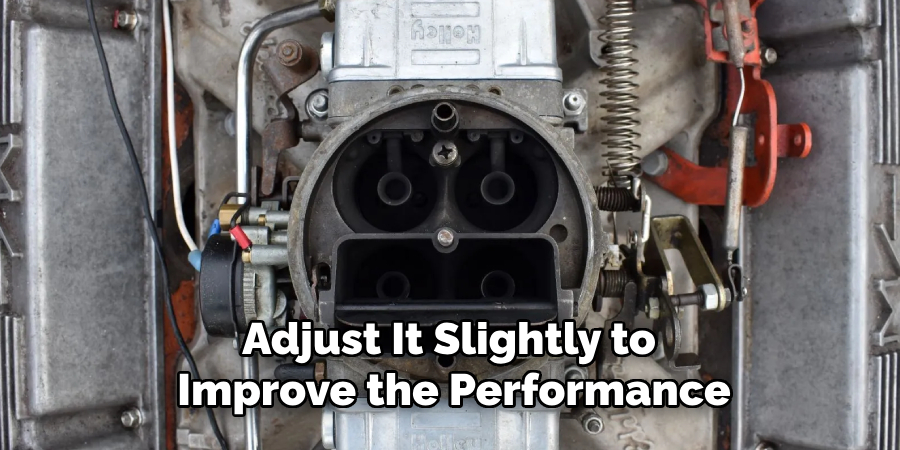

Adjust It Slightly to
Improve the Performance

Tip: A successful first test run confirms that your carburetor repair and reassembly were carried out correctly.

Conclusion

Diagnosing and fixing common carburetor issues on a lawn mower involves several key steps, from cleaning clogged parts to carefully reinstalling the unit. Regular maintenance and cleaning are essential to preventing carburetor problems and ensuring your lawn mower remains reliable. With proper tools and safety precautions, tackling repairs yourself can be straightforward and rewarding. Understanding how to fix a carburetor on a lawn mower not only restores its efficiency but also saves time and money compared to professional repairs. Following these steps, you can keep your lawn mower in top shape for years of efficient operation.
