A powertrain control module (PCM) is a critical component of modern vehicles and is responsible for controlling and monitoring essential engine and transmission functions.
When it malfunctions, it can lead to a range of issues, such as poor performance, reduced fuel efficiency, or even a failure to start. Identifying and addressing PCM problems can seem daunting, but with the right approach and understanding, many of these issues can be resolved effectively. This guide on how to fix a bad pcm will walk you through the steps to diagnose and fix a bad PCM.
Why Does a PCM Go Bad?
There are several reasons a Powertrain Control Module might fail, and understanding these causes can help prevent or diagnose issues. One of the most common reasons is exposure to extreme environmental conditions, such as excessive heat, moisture, or vibration, which can damage the internal circuitry. Electrical surges or shorts, often caused by faulty wiring or a malfunctioning alternator, can also lead to PCM failure. Additionally, wear and tear over time can degrade the module’s performance, particularly in older vehicles.
Other contributing factors may include software corruption or incorrect programming, as well as contamination from oil, dirt, or water entering the module. Recognizing these potential causes is crucial for maintaining a healthy PCM and avoiding costly repairs.
Needed Tools and Materials
Tools:
OBD2 Scanner:
An On-Board Diagnostics 2 (OBD2) scanner is an essential tool for diagnosing PCM problems. It connects to the vehicle’s OBD2 port and retrieves error codes stored by the PCM, providing valuable information on potential issues within the system.
Multimeter:
A multimeter is used to measure voltage, resistance, and continuity in electrical circuits. It can help identify faulty sensors or wiring that may be causing problems with the PCM.
Materials:
Replacement PCM:
In some cases, a bad PCM cannot be fixed and must be replaced. It is essential to have a replacement module readily available if this becomes necessary.
8 Step-by-step Guidelines on How to Fix a Bad Pcm
Step 1: Identify Symptoms

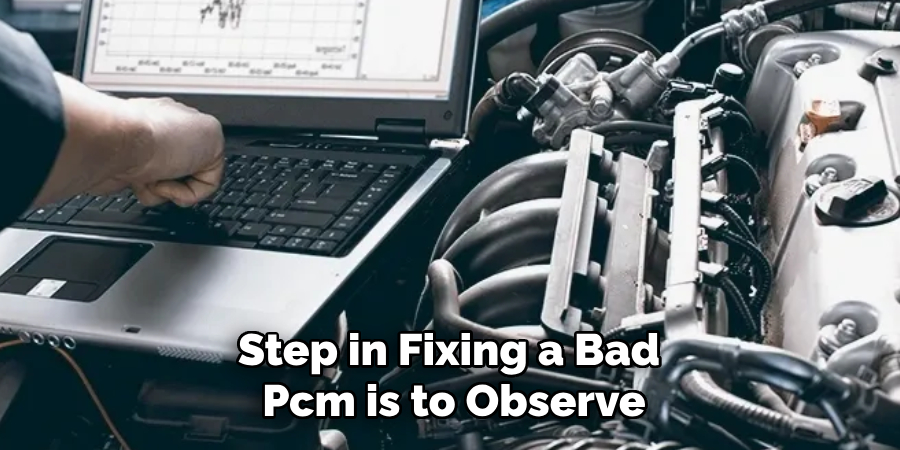

The first step in fixing a bad PCM is to observe and identify the symptoms of a potential malfunction. Common signs include engine misfires, stalling, difficulty starting the vehicle, or a noticeable drop in fuel efficiency. You may also experience erratic transmission behavior, such as rough shifting or failure to shift properly.
Additionally, the Check Engine Light (CEL) may illuminate on the dashboard, signaling that the PCM has detected an issue within the system. Listening to unusual noises or monitoring inconsistent performance can also help in spotting early warning signs. Properly documenting these symptoms will provide a clear starting point for diagnosing the exact problem with the PCM.
Step 2: Retrieve Error Codes

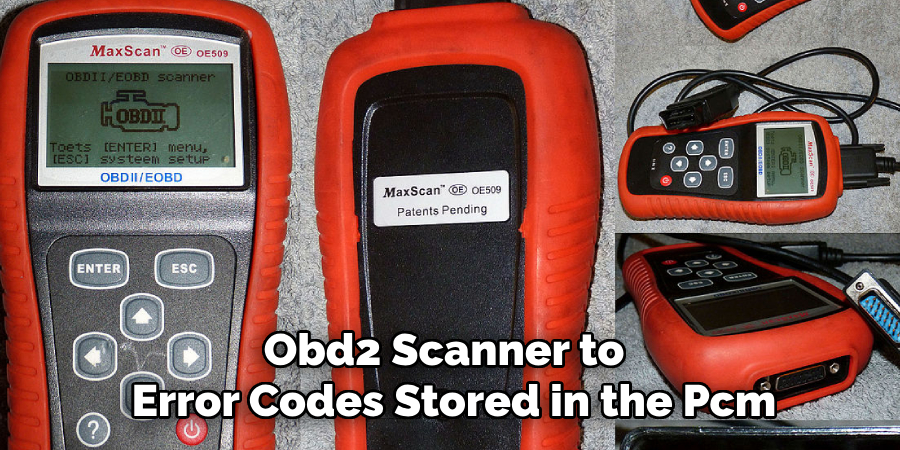

Use an OBD2 scanner to retrieve any error codes stored in the PCM. This will provide valuable insights into potential issues within the system, helping narrow down the root cause of the problem. Many scanners also have the ability to read live data from various sensors, providing further information for diagnosis.
It is important to note that not all error codes are specific to the PCM, and some may indicate issues with other components. Therefore, it is crucial to cross-reference any codes with the vehicle’s manual or online resources for accurate interpretation.
Step 3: Check Power and Ground Connections
Once you have retrieved the error codes, the next step is to verify the PCM’s power and ground connections. A faulty connection can mimic PCM failure or cause intermittent issues. Using a multimeter, test the power supply to ensure that the PCM is receiving the correct voltage. Locate the PCM’s wiring harness and identify the power and ground wires based on the vehicle’s wiring diagram.
Check for continuity in the ground connections to confirm they are secure and free from corrosion or damage. Loose or corroded grounds can disrupt the PCM’s operation. Similarly, inspect the power wires for any signs of damage, such as burns or fraying, which may indicate an electrical short. Rectify any issues by cleaning the connections, tightening loose wires, or replacing damaged components. This step ensures that the PCM has a stable power supply, which is essential for proper functionality.
Step 4: Inspect Connections and Wiring
Next, visually inspect the PCM connections and wiring for any damage or contamination. Ensure that all connectors are securely attached, with no signs of corrosion or moisture build-up. Damaged or dirty connections can affect the signals between the PCM and other components, leading to performance issues. Clean any debris or corrosion using a contact cleaner and replace any damaged connectors if necessary.
Additionally, inspect the wiring harness for any loose, frayed, or corroded wires. Repair or replace damaged wiring as needed to ensure proper communication between the PCM and other vehicle systems.
Step 5: Check Sensors
Faulty sensors can also cause issues with the PCM’s performance, as they provide essential data for the module to make appropriate adjustments. A multimeter is used to test the sensors connected to the PCM, such as the camshaft position (CMP) and crankshaft position (CKP) sensors. If any sensor readings are outside of the specified range, replace them according to manufacturer recommendations.
You can also compare sensor readings to live data retrieved from the OBD2 scanner to confirm their accuracy. If there is a discrepancy, it may indicate a problem with the wiring or connection.
Step 6: Perform Software Update or Re-flash
If all power and wiring connections are secure and functioning correctly, but issues persist, it may indicate a software issue with the PCM. In this case, performing a software update or re-flashing the module’s memory may solve the problem.
Software updates can be done by an authorized technician using specialized equipment or through online resources provided by the vehicle manufacturer. It is important to follow proper procedures and use compatible software versions to avoid further complications.
Step 7: Replace PCM

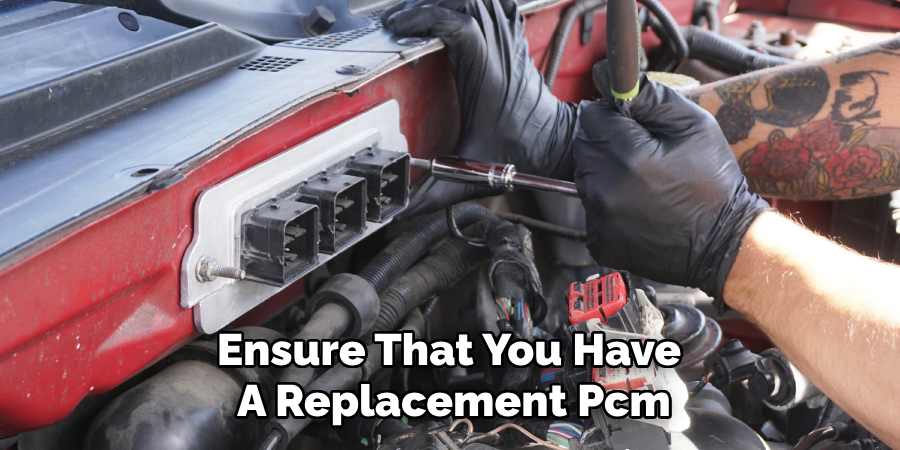

If all previous steps have been exhausted, and the PCM still does not function correctly, it may need to be replaced. In some cases, a bad PCM cannot be repaired and must be replaced with a new or refurbished unit. Ensure that you have a replacement PCM readily available before proceeding with this step.
Replacing a PCM typically involves disconnecting the battery and removing the old module from its location. Depending on the vehicle’s make and model, additional steps may be necessary to access or replace the PCM.
Step 8: Reprogramming
After installing the replacement PCM, it must be programmed to communicate with other vehicle systems correctly. Follow manufacturer instructions or seek professional assistance to ensure the successful programming of the new module.
It is also recommended that a relearn procedure for the PCM be performed, which involves driving the vehicle for a specific distance and under certain conditions to allow the module to adapt and learn its surroundings. This step ensures optimal performance from the new PCM and reduces the risk of recurring issues.
Following these steps on how to fix a bad pcm will help diagnose and potentially resolve issues with a faulty PCM. It is essential to take proper precautions, such as wearing safety gear and following manufacturer guidelines, when handling electronic components like the PCM. Regular maintenance and prompt attention to warning signs can also prevent future problems with the module and ensure the smooth operation of the vehicle’s engine and related systems.
Additional Tips for PCM Troubleshooting
- Consult with a professional mechanic or dealership if you are unsure about any steps in the process or if you do not have the necessary equipment.
- Keep track of all error codes and their associated definitions for accurate diagnosis and resolution.
- Use quality diagnostic tools and follow proper procedures to avoid causing further damage to the vehicle’s systems.
- Consider investing in a code reader or scanner for regular maintenance checks and quick identification of potential issues with the PCM before they escalate.
- Stay up-to-date with recalls or software updates from the manufacturer, as these may address known issues with specific vehicle models and PDMs.
Frequently Asked Questions
Q1: Can a Bad Pcm Cause Other Issues With the Vehicle’s Performance?
A1: Yes, a faulty PCM can affect various systems in the vehicle, such as fuel injection and ignition timing, resulting in issues with engine performance, fuel economy, and emissions.
Q2: How Much Does It Cost to Replace a Bad Pcm?
A2: The cost of replacing a PCM can vary greatly depending on the vehicle’s make and model. On average, it can range from $500 to $1500 for parts and labor.
Q3: Can You Drive With a Bad Pcm?
A3: It is not recommended to drive with a bad PCM as it can lead to further damage to the vehicle’s systems and compromise safety. Seek professional assistance immediately if you suspect an issue with the PCM.
Conclusion
Fixing a bad PCM requires patience, attention to detail, and proper diagnosis techniques. By following these 8 steps on how to fix a bad pcm, you can effectively troubleshoot and repair any issues affecting your vehicle’s PCM.
Regular maintenance and prompt addressing of any symptoms can help prevent costly repairs and ensure the smooth operation of your vehicle’s engine. Remember, when in doubt, always consult a professional mechanic for assistance. Happy repairing!
